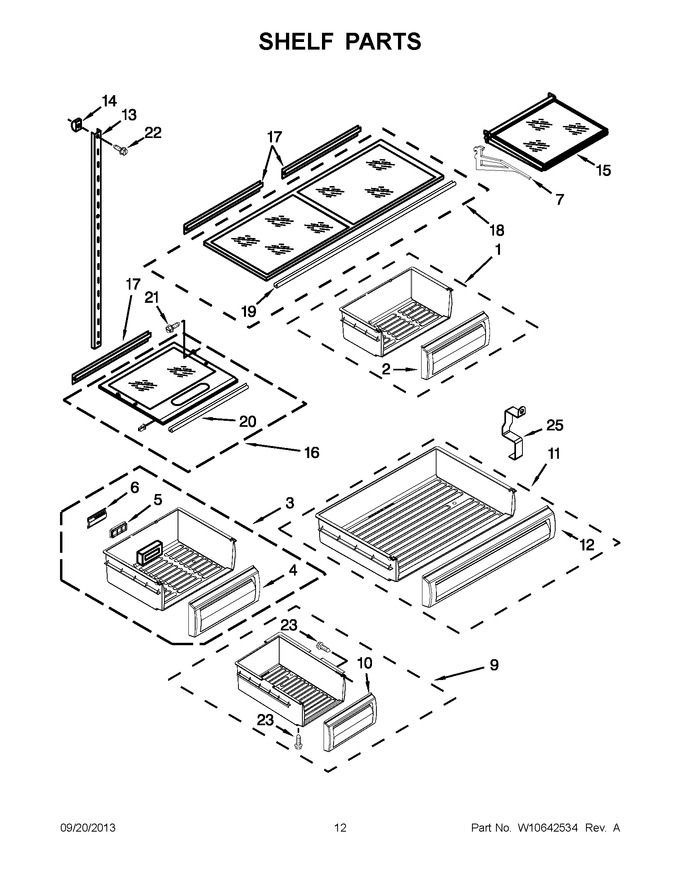

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407630		Assembly, Crisper Pan (includes Item 2) (right Hand)		Appelez-nous	-
1	W10407631		Assembly, Crisper Pan (includes Item 2) (left Hand)				$ 87.13
2	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 133.22
3	W10407635		Assembly, Deli Pan (includes Items 4, 5 And 6) (left Hand)				$ 80.70
3	W10407633		Assembly, Deli Pan (includes Items 4, 5 And 6) (right Hand)				$ 95.83
4	WP2256365		Assembly, Meat Pan Front   (Replaces: 2256365)				$ 173.51
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2317939		Air Deflector		Appelez-nous	-
7	W10187549		Sidearm, Shelf				$ 299.12
9	2306174		Assembly, Ice Pan				$ 147.41
10	2306175		Front, Ice Pan				$ 95.96
11	2327511		Assembly, Freezer Pan		Appelez-nous	-
12	WP2256367		Assembly, Meat Pan Front   (Replaces: 2256367)				$ 182.76
13	W10246602		Ladder, Shelf (center)		Appelez-nous	-
13	W10213472		Ladder, Shelf (side)		Appelez-nous	-
14	520965		Support, Ladder				$ 31.35
15	WPW10198701		Shelf   (Replaces: W10198701)				$ 244.06
16	W10757993		Cover, Deli Bin (right Hand)   (Replaces: W10183755)				$ 852.43
16	W10757973		Cover, Deli Bin (left Hand)   (Replaces: W10183756)				$ 808.62
17	2309400		Gasket, Rear		Appelez-nous	-
18	W11430640		Cover, Crisper   (Replaces: W10183754)				$ 342.71
19	2309396		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309395		Gasket, Front (deli Cover)		Appelez-nous	-
21	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
22	W10678207		Screw   (Replaces: 2001377)				$ 16.43
23	WP488787		Screw   (Replaces: 488886)				$ 11.26
25	2327394		Locking Clip, Bin (left Hand)		Appelez-nous	-
25	2327393		Locking Clip, Bin (right Hand)				$ 61.29
