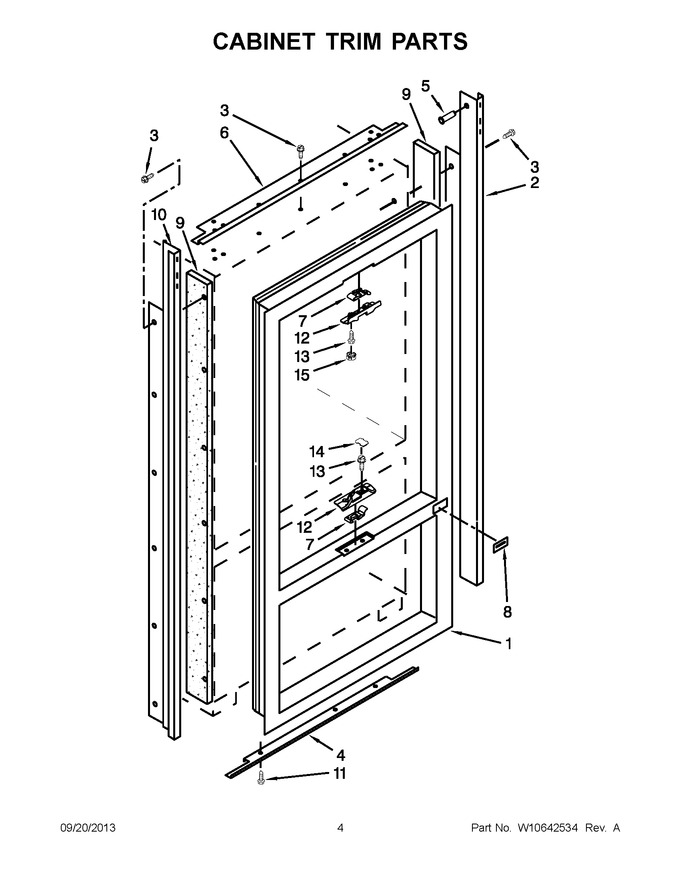

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10132472		Trim, Cabinet Side (right) (aluminum)		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2316687		Trim, Bottom Cabinet (aluminum)				$ 184.68
5	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 8.03
6	2314017		Trim, Top Cabinet (aluminum)				$ 124.60
7	2316857		Cam, Mullion (top)				$ 15.67
7	2316858		Cam, Mullion (bottom)		Appelez-nous	-
8	2005782		Cover, Hinge (white)				$ 12.04
9	2005925		Seal, Side Trim				$ 83.72
10	W10132541		Trim, Cabinet Side (left) (aluminum)		Appelez-nous	-
11	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
12	2309230		Contact, Mullion (top)				$ 16.17
12	2309231		Contact, Mullion (bottom)				$ 54.31
13	W11624204		Screw   (Replaces: 486194)				$ 14.72
14	2316899		Cover, Screw (square)		Appelez-nous	-
15	2317078		Cover, Screw (round)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
