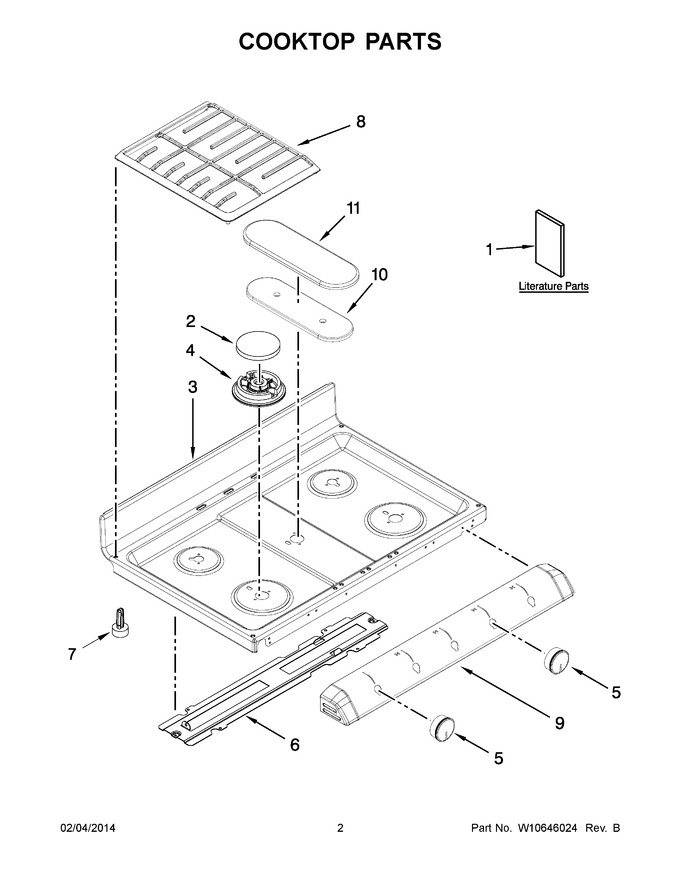

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10600816		Guide, Use And Care		Appelez-nous	-
1	W10575961		Instructions, Installation		Appelez-nous	-
1	W10575967		Tech Sheet		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10299239		Set, Burner Cap (wetstone)		Appelez-nous	-
2	WPW10299233		Set, Burner Cap (black)   (Replaces: W10299233)				$ 210.99
3	W10336330		Cooktop (black)   (Replaces: W10260169)				$ 420.07
3	W10336331		Cooktop (white)   (Replaces: W10260170)				$ 418.08
4	WPW10406797		Burner Head, Rapid (12k) (right Front)   (Replaces: W10406797)				$ 92.91
4	WPW10406243		Burner Head, Auxiliary (6k) (left Rear & Right Rear)   (Replaces: W10406243)			Immediately	$ 39.08
4	WPW10406878		Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878)				$ 107.48
4	WPW10336094		Burner Head (center)   (Replaces: W10336094)				$ 227.81
5	WPW10506367		Knob, Control (stainless)   (Replaces: W10506367)			Immediately	$ 22.80
6	W10518258		Bracket, Cooktop Support		Appelez-nous	-
7	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
8	WPW10338214		Set, Grate (black)   (Replaces: W10338214)				$ 345.92
8	W10338215		Set, Grate (wetstone)		Appelez-nous	-
9	W10544733		Panel, Manifold (stainless)		Appelez-nous	-
9	W10554310		Panel, Manifold (white)		Appelez-nous	-
9	W10554311		Panel, Manifold (black)		Appelez-nous	-
10	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 110.05
11	W10171137		Kit, Burner Cap (fish Burner Only) (wetstone)				$ 116.61
11	WPW10171140		Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140)				$ 168.47
