Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left Hand)) Special Order $ 92.84

1 W10319110 Support, Backguard (white (left Hand)) Special Order $ 95.95

1 W10319111 Support, Backguard (black (right Hand)) Special Order $ 43.80

1 W10319112 Support, Backguard (white (right Hand)) Special Order $ 93.79

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 14.72

3 WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 273.23

3 WPW10318551 Console (black)   (Replaces: W10318551) Special Order $ 272.41

3 WPW10318552 Console (white)   (Replaces: W10318552) In-Stock Immediately $ 282.47

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

5 W10539964 Electronic Control (mrc2) Appelez-nous -
6 W10528788 Assembly, Membrane (including Bracket) (white) Appelez-nous -
6 W10528787 Assembly, Membrane (including Bracket) (black) Appelez-nous -
7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

9 W10296773 Cover, Backguard Special Order $ 194.52

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56


    View Diagram in Separate Window     Print Icon   Print Part List

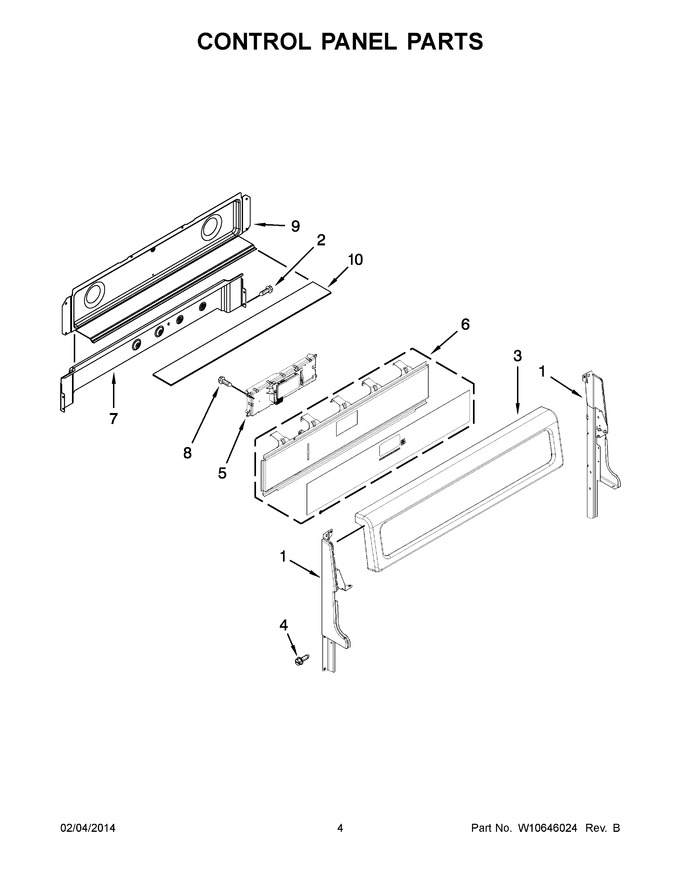

Diagram for WGG755S0BE01
