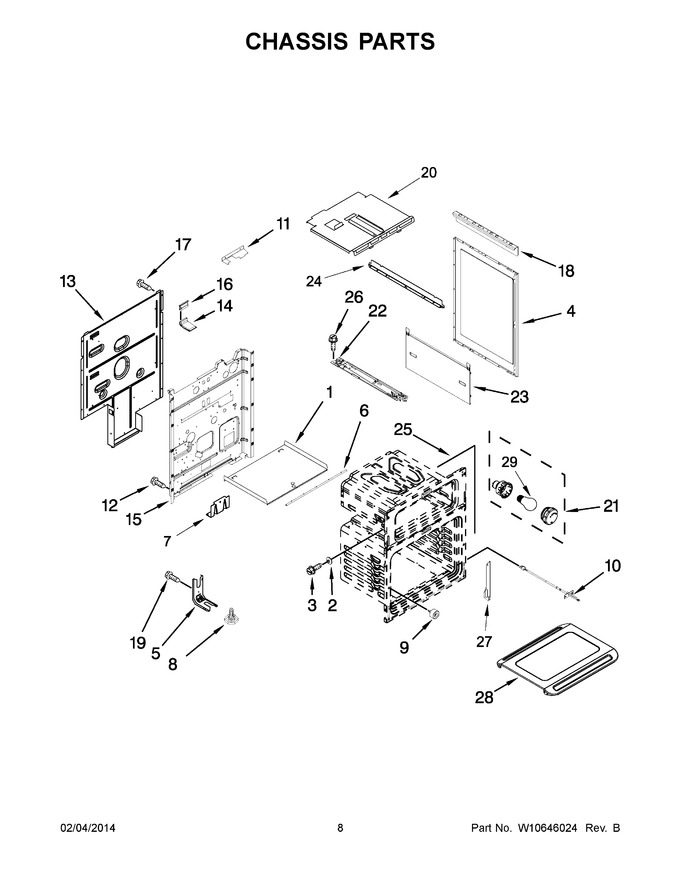

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini				$ 143.35
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 79.83
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 7.52
4	W10330375		Assembly, Side Panel (black)				$ 82.13
4	WPW10330376		Assembly, Side Panel (white)   (Replaces: W10330376)				$ 207.46
5	WP3801F656-51		Bracket, Anti Tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	W10260703		Support, Lower Oven		Appelez-nous	-
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 28.11
9	W10105790		Bumper & Screw				$ 7.06
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.44
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 199.00
14	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 352.71
14	W10272519		Assembly, Flue (lower)		Appelez-nous	-
15	WPW10260580		Back, Main   (Replaces: W10260580)				$ 148.52
16	W10321445		Assembly, Outlet Flue (lower)		Appelez-nous	-
16	W10321446		Assembly, Outlet Flue (upper)		Appelez-nous	-
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W10319087		Bracket, U Channel				$ 79.14
19	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 29.26
20	W10324643		Support, Insulation		Appelez-nous	-
21	W11594027		Assembly, Light   (Replaces: W10565174)			Immediately	$ 87.01
22	W10883049		Lock, Integrated Light   (Replaces: W10471348)			Immediately	$ 306.46
23	W10538516		Shield-side Insulation				$ 135.73
24	W10357697		Bracket, Side Panel				$ 23.18
25	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 181.71
25	W10318928		Gasket, Oven Door (upper)				$ 168.92
26	74003975		Screw   (Replaces: 7101P375-60)				$ 13.36
27	W10410461		Cover, Hinge (right)				$ 90.34
27	W10410463		Cover, Hinge (left)				$ 94.22
28	WPW10272546		Bottom, Oven   (Replaces: W10272546)			Immediately	$ 211.92
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
NI	W11684919		Insulation, Floor   (Replaces: W10344586)				$ 116.61
NI	W11684769		Insulation, Wrapper (upper)   (Replaces: W10318910)				$ 120.07
NI	W11688777		Insulation, Back (upper)   (Replaces: W10318918)				$ 72.12
NI	W11688385		Insulation, Wrapper (lower)   (Replaces: W10318911)				$ 121.43
NI	W11685611		Insulation, Back (lower)   (Replaces: W10204081)				$ 117.81
