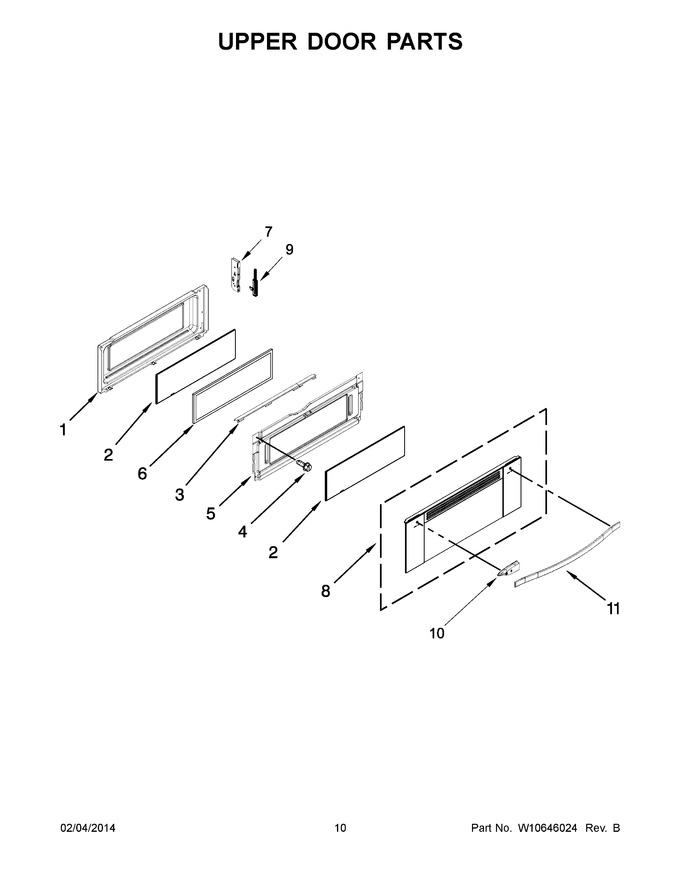

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11051040		Lining, Door   (Replaces: W10485720)				$ 301.00
2	W11132120		Glass, Inner   (Replaces: W10272707)				$ 179.33
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 171.93
4	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
5	W10485723		Retainer, Insulation				$ 252.42
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 99.18
7	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
8	W10677219		Assembly, Glass Door (stainless)   (Replaces: W10674762)		Appelez-nous	-
8	W10677221		Assembly, Glass Door (white Ice)   (Replaces: W10675403)				$ 377.96
8	W10677228		Assembly, Glass Door (black Ice)   (Replaces: W10675404)		Appelez-nous	-
9	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 55.76
9	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 59.59
10	WPW10429492		Standoff, Handle (white)   (Replaces: W10429492)			Immediately	$ 23.08
10	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 80.75
11	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
