SELECT A DIAGRAM
New Model Search:

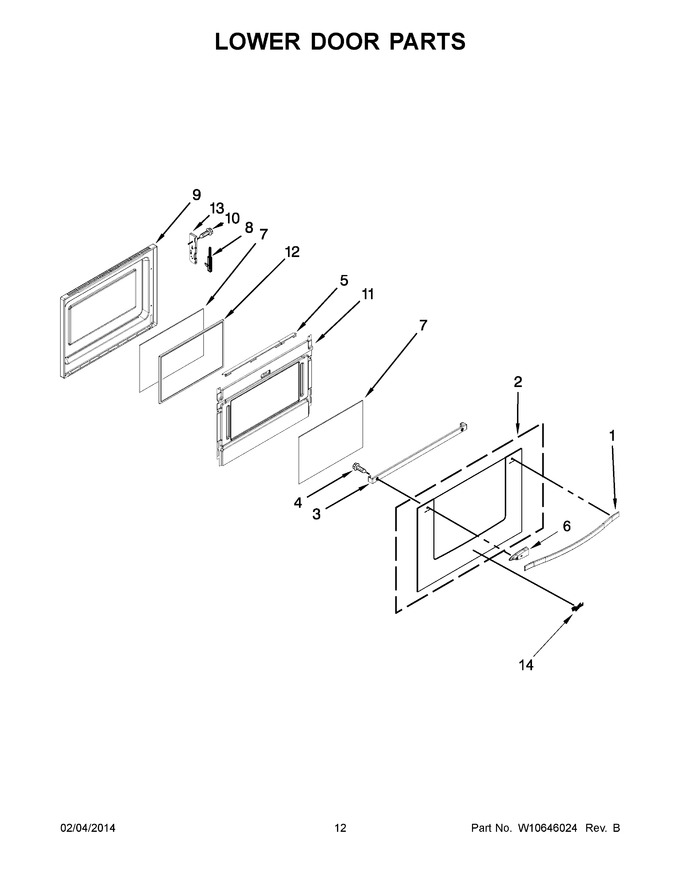

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 175.54 | ||||
| 2 | W10677248 | Assembly, Glass Door (black Ice) (Replaces: W10675400) |
|
$ 377.86 | |||||
| 2 | W10674127 | Assembly, Glass Door (stainless) |
|
- | |||||
| 2 | W10677245 | Assembly, Glass Door (white Ice) (Replaces: W10675399) |
|
$ 482.27 | |||||
| 3 | WPW10294695 | Bracket, Handle (Replaces: W10294695) |
|
$ 147.02 | |||||
| 3 | W10575689 | Bracket, Handle (stainless Models Only) |
|
$ 145.99 | |||||
| 4 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 5 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 6 | WPW10429492 | Standoff, Handle (white) (Replaces: W10429492) |
|
Immediately | $ 23.08 | ||||
| 6 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 80.75 | |||||
| 7 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 141.95 | ||||
| 8 | WPW10335434 | Hinge, Door Left (Replaces: W10335434) |
|
Immediately | $ 102.90 | ||||
| 8 | WPW10335433 | Hinge, Door Right (Replaces: W10335433) |
|
$ 104.99 | |||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 345.72 | |||||
| 10 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 11 | W10340464 | Retainer, Insulation |
|
$ 289.80 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 106.43 | |||||
| 13 | WPW10272328 | Receiver, Right (Replaces: W10272328) |
|
$ 90.04 | |||||
| 13 | WPW10272329 | Receiver, Left (Replaces: W10272329) |
|
$ 81.11 | |||||
| 14 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 14 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 |
