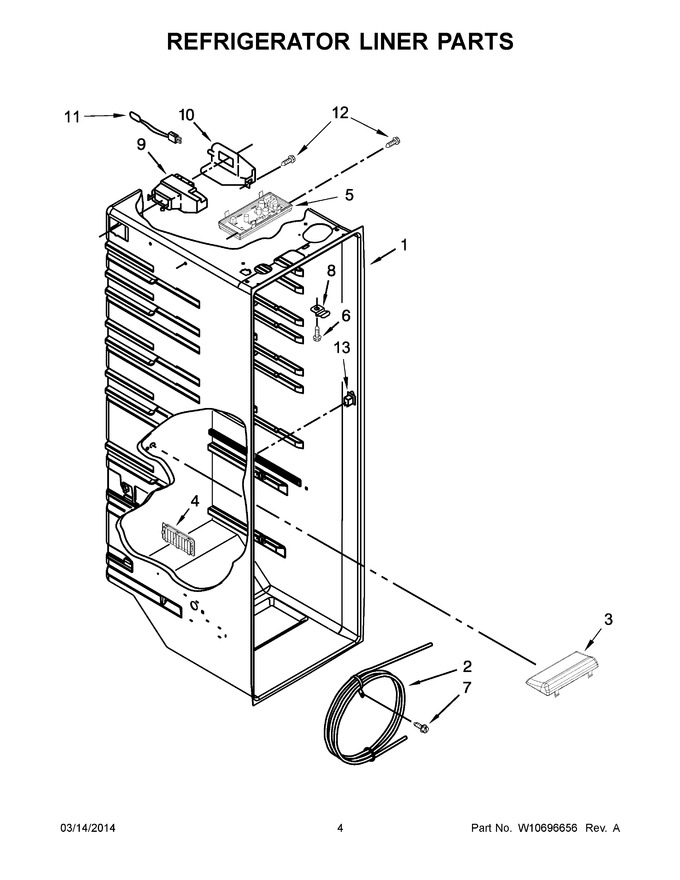

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10276792		Reservoir   (Replaces: W10526445)				$ 144.45
3	WPW10515057		Led Light Assembly, Tapered Lens   (Replaces: W10515057)			Immediately	$ 47.29
4	W10550195		Louver		Appelez-nous	-
5	WPW10515058		Led Light Assembly, Flat Lens   (Replaces: W10515058)			Immediately	$ 37.12
6	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
7	488280		Screw		Appelez-nous	-
8	2311612		Clip, Control Box		Appelez-nous	-
9	W10899382		Air Diffuser Assembly   (Replaces: W10128734)				$ 201.44
10	W10128735		Cover, Air Diffuser		Appelez-nous	-
11	WP2188819		Thermistor   (Replaces: 2188819)			Immediately	$ 46.01
12	W10141518		Screw				$ 9.54
13	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 39.09
