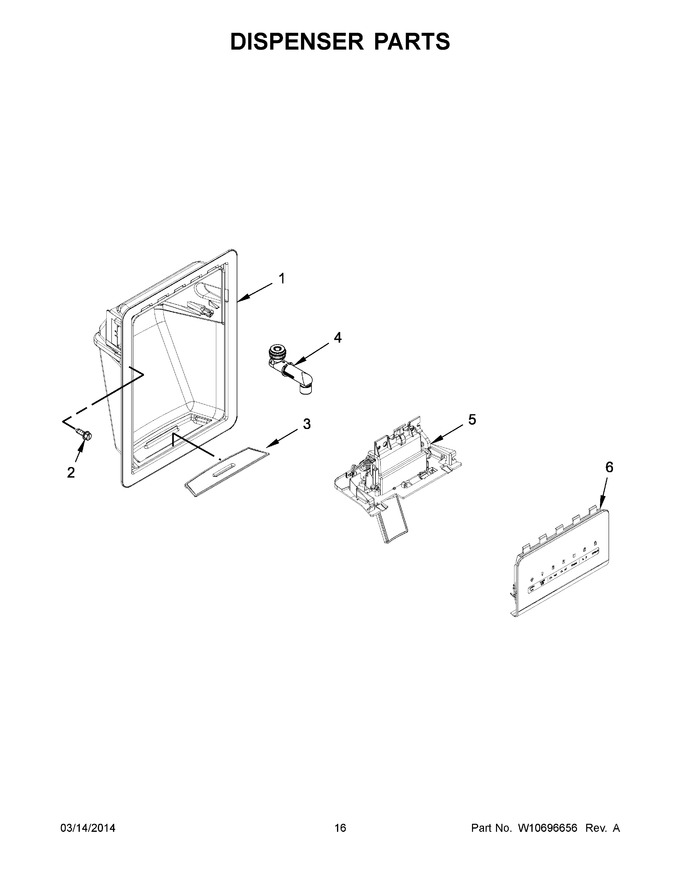

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 3 | WPW10397392 | Grille, Overflow (white) (Replaces: W10397392) |
|
$ 51.23 | |||||
| 3 | WPW10397394 | Grille, Overflow (black) (Replaces: W10397394) |
|
$ 50.86 | |||||
| 3 | WPW10397395 | Grille, Overflow (grey) (Replaces: W10397395) |
|
$ 51.23 | |||||
| 4 | WPW10397435 | Water Fitting Assembly (Replaces: W10397435) |
|
$ 132.24 | |||||
| 5 | W10616146 | Separator Assembly (white) |
|
$ 219.38 | |||||
| 5 | W10616147 | Separator Assembly (black) |
|
$ 83.90 | |||||
| 5 | W10616148 | Separator Assembly (grey) |
|
$ 249.84 | |||||
| 6 | W11034361 | Ui Assembly Control (white) (Replaces: W10606406) |
|
$ 321.12 | |||||
| 6 | WPW10606407 | Ui Assembly Control (black) (Replaces: W10606407) |
|
$ 280.89 | |||||
| 6 | W11034364 | Ui Assembly Control (grey) (Replaces: W10606408) |
|
$ 321.12 |
