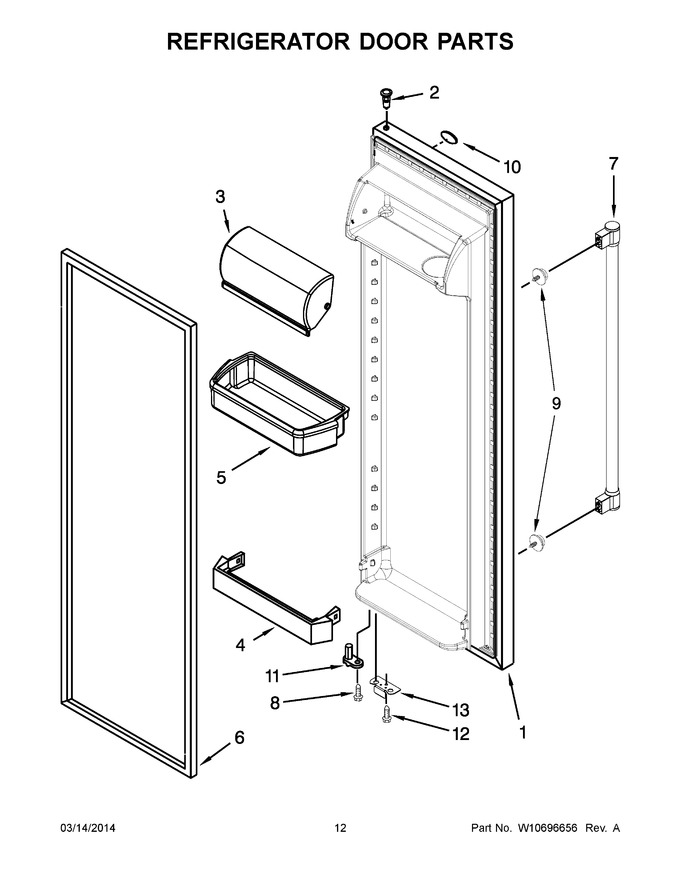

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10428790		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	W10424384		Refrigerator Door (includes Item No.6) (monochromatic Stainless)		Appelez-nous	-
1	W10407738		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
2	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	W10636040		Trivet				$ 44.01
5	WPW10672340		Bin, Door   (Replaces: W10672340)				$ 152.89
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
6	2159073		Door Gasket, Magnetic (beige)   (Replaces: 2309600)				$ 333.19
6	W10136732		Door Gasket, Magnetic (grey)   (Replaces: 2327161)			Immediately	$ 361.20
7	WPW10643725		Handle (stainless)   (Replaces: W10643725)				$ 313.17
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
10	WPW10612926		Nameplate (grey)   (Replaces: W10612926)			Immediately	$ 39.60
11	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
13	W10507574		Bracket, Door Stop (grey)		Appelez-nous	-
13	W10219802		Bracket, Door Stop (black)				$ 5.62
