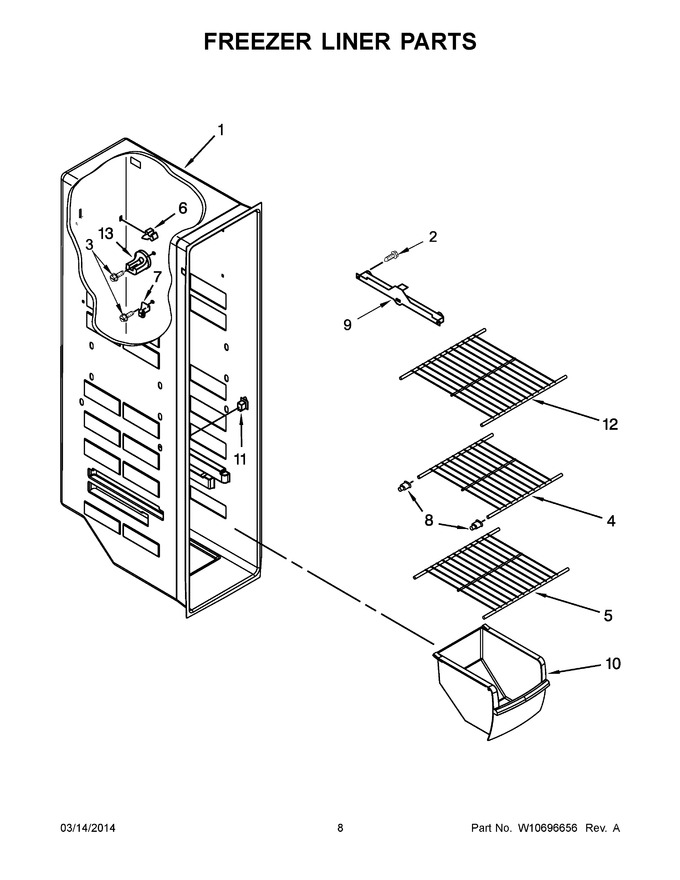

05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Unit Parts


11 - Ice Maker Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	718257		Screw   (Replaces: 489100)		Appelez-nous	-
3	W10142289		Screw   (Replaces: 3400893)				$ 9.61
4	WPW10318960		Shelf, Wire   (Replaces: W10318960)			Immediately	$ 94.63
5	WPW10318953		Shelf, Wire   (Replaces: W10318953)			Immediately	$ 87.76
6	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
7	2196206		Support, Stud		Appelez-nous	-
8	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
9	W10845583		Slide, Ice Container (right)   (Replaces: 1119293)				$ 130.12
9	W10845585		Slide, Ice Container (left)   (Replaces: 1119237)				$ 139.41
10	W10640377		Bin, Freezer		Appelez-nous	-
11	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 40.09
12	WPW10318952		Shelf, Wire   (Replaces: W10318952)			Immediately	$ 92.48
13	2196206		Support, Stud		Appelez-nous	-
