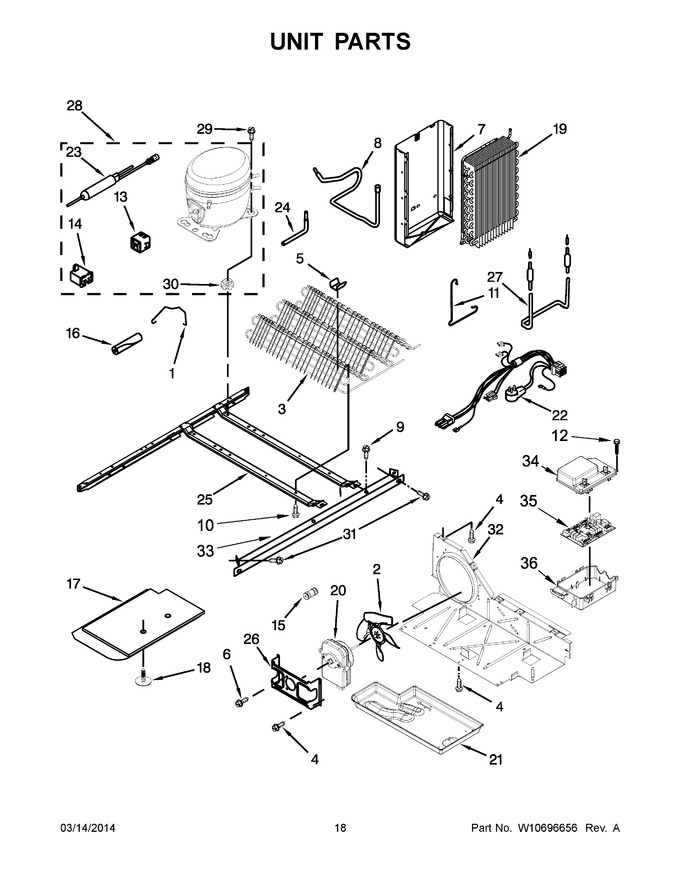

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204187 | Strap, Bale |
|
- | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Assembly, Condenser |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WPW10194474 | Assembly, Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 125.51 | |||||
| 8 | 2205764 | Tube Suction |
|
$ 89.18 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 11 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 12 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 13 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 14 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 15 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 16 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 17 | W10466699 | Unit Cover, Bottom |
|
- | |||||
| 18 | 489396 | Clip |
|
$ 11.26 | |||||
| 19 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 20 | W11127829 | Motor, Condenser Fan (Replaces: W10527155) |
|
Immediately | $ 185.05 | ||||
| 21 | WPW10614158 | Tray, Evaporator (Replaces: W10614158) |
|
Immediately | $ 113.18 | ||||
| 22 | W10421559 | Unit, Harness |
|
- | |||||
| 23 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 24 | 2325479 | Tube, Process |
|
- | |||||
| 25 | 2304903 | Frame, Unit Mounting |
|
$ 244.68 | |||||
| 26 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 27 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 167.33 | ||||
| 28 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 834.53 | |||||
| 29 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 30 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 31 | 489340 | Bolt |
|
- | |||||
| 32 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 33 | W10207512 | Rail, Unit Mounting |
|
- | |||||
| 34 | W10334855 | Control, Cover |
|
- | |||||
| 35 | W11035837 | Electronic Control (Replaces: W10617097) |
|
$ 334.93 | |||||
| 36 | 2323186 | Control, Box |
|
$ 107.48 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
