Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Seviceable Part) Appelez-nous -
2 WP841180A Ice Cube Tray   (Replaces: 841180) In-Stock Immediately $ 47.84

3 W11104452 Led Light Assembly, Flat Lens   (Replaces: W10550215) In-Stock Immediately $ 141.36

4 2223173 Plug, Fill Tube Special Order $ 9.24

5 W10191952 Screw Special Order $ 5.65

6 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.94

7 W10318945 Shelf, Wire Special Order $ 103.20

8 WPW10318947 Shelf, Wire   (Replaces: W10318947) Special Order $ 91.81

9 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.70

10 WPW10318961 Shelf, Wire   (Replaces: W10318961) In-Stock Immediately $ 81.55

11 W11577967 Bin, Freezer   (Replaces: 2309757) Special Order $ 96.30

12 WPW10318948 Shelf, Wire   (Replaces: W10318948) Special Order $ 155.23

13 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

14 2160912 Cover, Wiring Appelez-nous -
15 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

16 W11527119 Assembly, Shelf Stud   (Replaces: W10173127) Appelez-nous -
17 2171714 Shelf, Top Freezer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

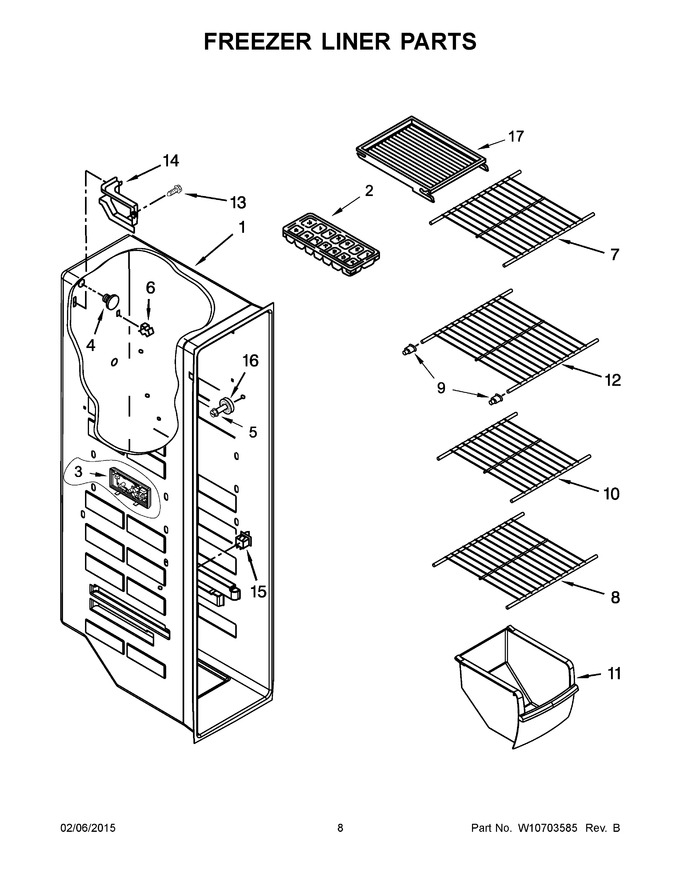

Diagram for WRS3L5FNDM00
