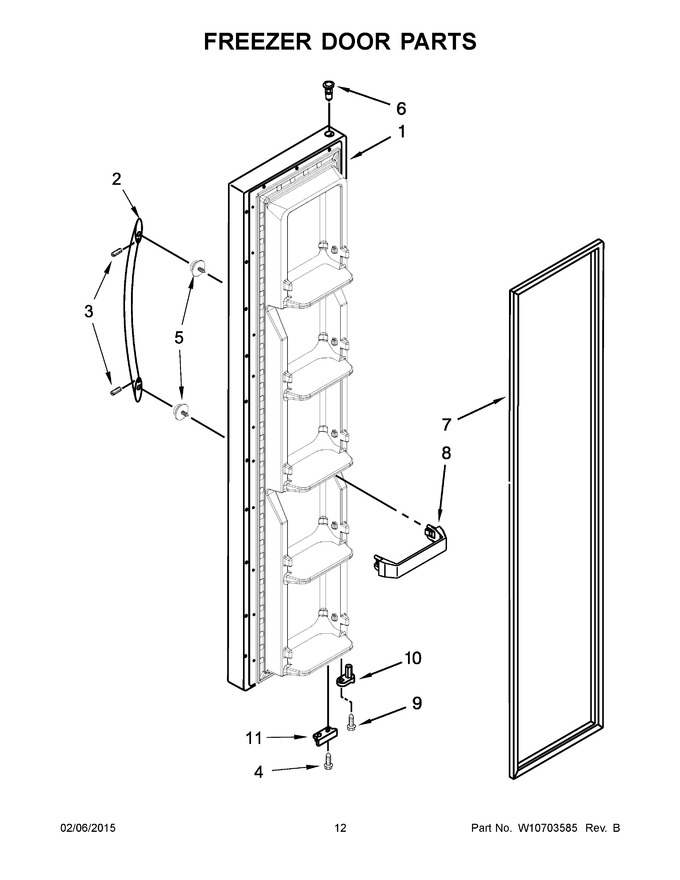

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10451840		Freezer Door (includes Item #7) (white)		Appelez-nous	-
2	W10899551		Handle (brushed Aluminum)   (Replaces: W10407272)			Immediately	$ 188.82
3	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
7	2159074		Door Gasket, Magnetic (service) (beige)   (Replaces: 2309532)				$ 325.70
8	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
9	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
10	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	2306940		Bracket, Door Stop (silver)				$ 101.93
11A	2306940B		Bracket, Door Stop (black)				$ 38.97
11B	W10507570		Bracket, Door Stop (grey)		Appelez-nous	-
1A	LW10451841		Freezer Door (includes Item #7) (black)   (Replaces: W10451841)		Appelez-nous	-
1B	W10451843		Freezer Door (includes Item #7) (monochromatic Stainless)		Appelez-nous	-
7A	2159082		Door Gasket, Magnetic (service) (black)   (Replaces: 2309533)				$ 332.49
7B	W10136735		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327164)				$ 254.84

    View Diagram in Separate Window       Print Part List
