Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 489340 Bolt Appelez-nous -
2 W11458267 Blade, Fan   (Replaces: 2225834) In-Stock Immediately $ 25.19

3 2324712 Assembly, Condenser Special Order $ 323.45

4 WP489464 Screw   (Replaces: 489464) In-Stock Immediately $ 8.38

5 W10683556 Clip, Condenser   (Replaces: 2311725) Special Order $ 19.38

6 WP8533993 Screw   (Replaces: 8533993) Special Order $ 11.21

7 W10194475 Assembly, Heat Shield And Drain Pan Appelez-nous -
8 W10576260 Tube, Suction Appelez-nous -
9 2325479 Tube, Process Appelez-nous -
10 WPW10194431 Device, Combination Start (start Relay And Overload)   (Replaces: W10194431) In-Stock Immediately $ 86.85

11 W10204187 Strap, Bale Appelez-nous -
12 WPW10339879 Tie, Wire   (Replaces: 2263990) Special Order $ 8.30

13 W11544659 Screw   (Replaces: 8281232) Special Order $ 14.35

14 2161324 Clip, Defrost Heater Appelez-nous -
15 1110663 Guard, Fan Appelez-nous -
16 W11751592 Sleeve   (Replaces: 2161302) In-Stock Immediately $ 21.32

17 WPW10350564 Capacitor   (Replaces: W10350564) In-Stock Immediately $ 99.49

18 WP489427 Screw   (Replaces: 489427) Special Order $ 7.84

19 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

20 W10466698 Unit Cover, Bottom Special Order $ 103.75

21 489396 Clip Special Order $ 11.26

22 WP2188823 Evaporator   (Replaces: 2188823) In-Stock Immediately $ 381.49

23 W10812039 Clip, Wire   (Replaces: 2326941) Special Order $ 11.12

24 W11127829 Motor, Condenser Fan   (Replaces: W10527155) In-Stock Immediately $ 185.05

25 WPW10614158 Tray, Evaporator   (Replaces: W10614158) In-Stock Immediately $ 113.18

26 W10417918 Harness, Unit Special Order $ 109.84

27 WPW10143759 Drier   (Replaces: W10177049) In-Stock Immediately $ 30.78

28 WPW10463858 Compressor   (Replaces: W10405532) Special Order $ 639.45

29 W10196321 Frame, Unit Mounting Appelez-nous -
30 WP2181929 Bracket, Fan Motor   (Replaces: 2181929) Special Order $ 12.93

31 WP2323198 Heater, Defrost   (Replaces: 2188175) In-Stock Immediately $ 90.70

32 W11417341 Screw   (Replaces: W10476309) Special Order $ 14.07

33 WPW10169124 Grommet   (Replaces: 10835903) In-Stock Immediately $ 7.55

34 W10332806 Baffle, Air Special Order $ 102.82

35 W10196313 Rail, Unit Mounting Appelez-nous -
NI WP978025 Valve, Access   (Replaces: 978025) In-Stock Immediately $ 110.51

NI N/P Refrigerant Charge 5.5 Oz (r-134a) Appelez-nous -
NI 876764 Valve, Access In-Stock Immediately $ 95.92

NI 978030 Valve, Access Special Order $ 137.25

NI 978029 Valve, Access Special Order $ 93.85

NI 978028 Valve, Access Appelez-nous -
NI SF5538 Valve, Access   (Replaces: 978027) Special Order $ 21.64

NI 978026 Valve, Access In-Stock Immediately $ 134.49


    View Diagram in Separate Window     Print Icon   Print Part List

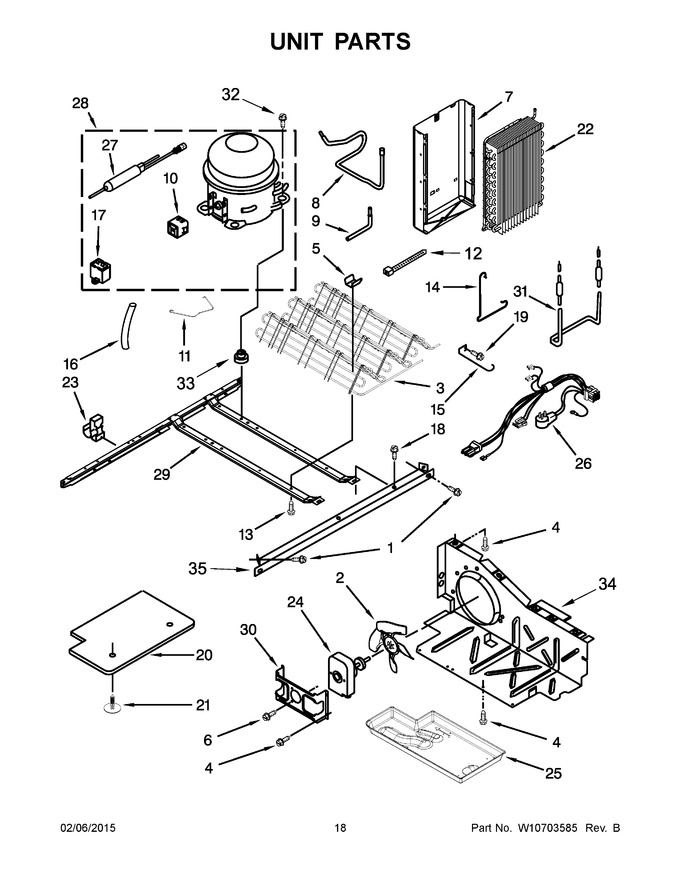

Diagram for WRS3L5FNDM00
