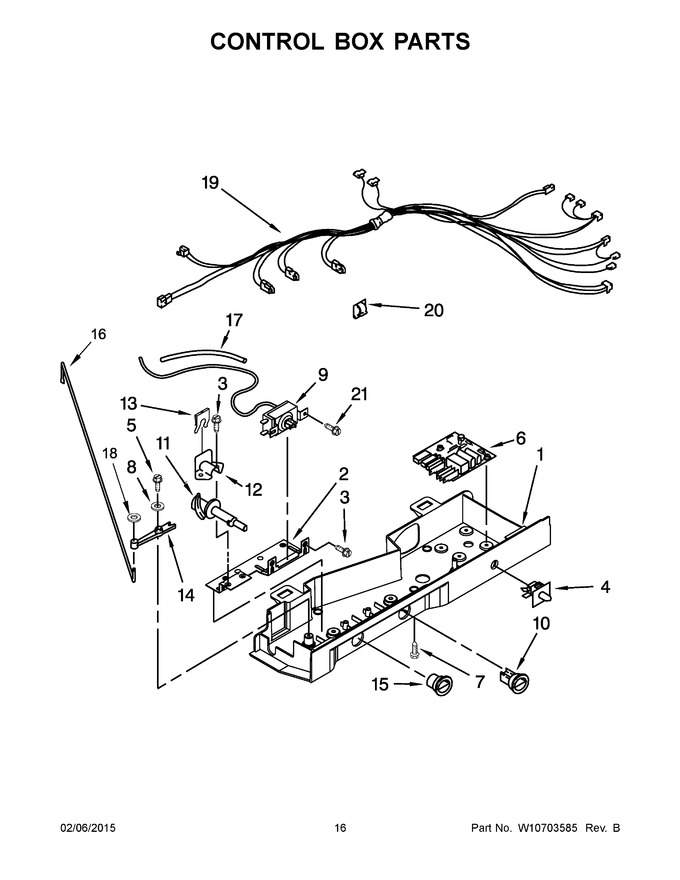

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10460941		Control Box		Appelez-nous	-
2	2311611		Bracket, Mounting		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Switch, Light   (Replaces: 2219875)			Immediately	$ 40.40
5	627068		Screw				$ 12.73
6	WPW10366605		Control, Adaptive Defrost   (Replaces: W10366605)			Immediately	$ 276.28
7	489392		Screw   (Replaces: 489398)				$ 14.02
8	489203		Washer   (Replaces: W10657618)		Appelez-nous	-
9	WPW10583800		Thermostat Assembly   (Replaces: W10583800)				$ 225.56
10	W10723843		Knob, Thermostat   (Replaces: 2311614)				$ 27.92
11	WP2182195		Assembly, Cam   (Replaces: 2182195)				$ 5.13
12	1110560		Body, Bearing				$ 11.30
13	WP2196062		Damper, Control   (Replaces: 2196062)				$ 11.25
14	1110559		Arm, Pivot				$ 8.35
15	2311615		Knob, Control				$ 52.26
16	2311631		Rod, Connecting		Appelez-nous	-
17	WP2196003		Tube, Thermostat Barrier   (Replaces: 2196001)				$ 8.35
18	W10672286		Fastener, Push-on		Appelez-nous	-
19	W10417924		Harness, Control Box				$ 215.15
20	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 8.14
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
