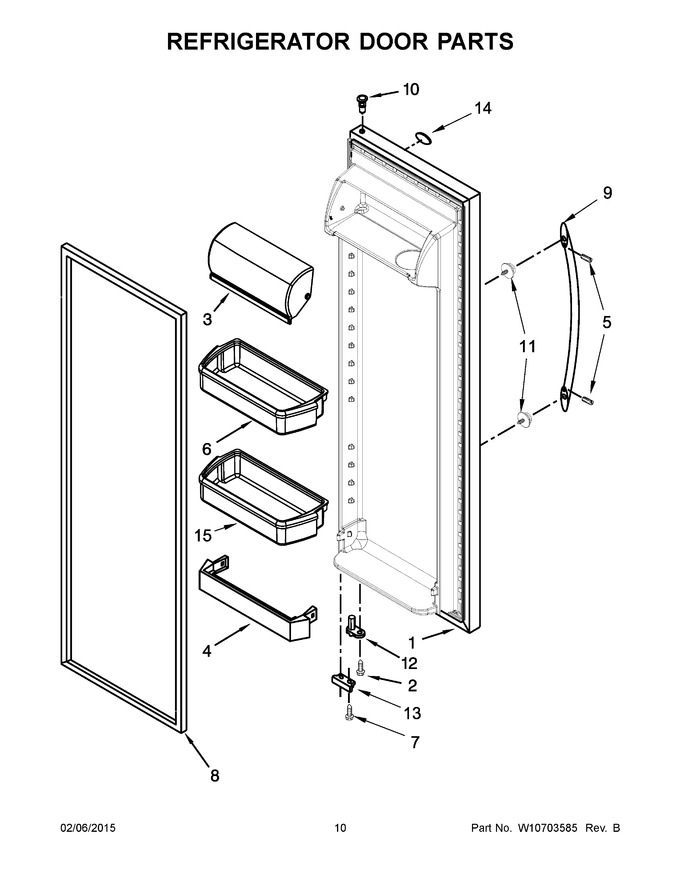

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407713		Refrigerator Door (includes Item #8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
6	WPW10321304		Bin, Door   (Replaces: W10549739)			Immediately	$ 44.73
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	2159075		Door Gasket, Magnetic (service) (beige)   (Replaces: 2309528)			Immediately	$ 333.00
9	W10899551		Handle (brushed Aluminum)   (Replaces: W10407272)			Immediately	$ 188.82
10	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
11	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
12	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
14	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
15	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.73
13A	W10219802		Bracket, Door Stop (black)				$ 5.62
13B	W10507574		Bracket, Door Stop (grey)		Appelez-nous	-
1A	W10407712		Refrigerator Door (includes Item #8) (black)		Appelez-nous	-
1B	W10430228		Refrigerator Door (includes Item #8) (monochromatic Stainless)		Appelez-nous	-
8A	2159083		Door Gasket, Magnetic (service) (black)   (Replaces: 2309529)				$ 251.49
8B	WPW10136734		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327163)				$ 335.39

    View Diagram in Separate Window       Print Part List
