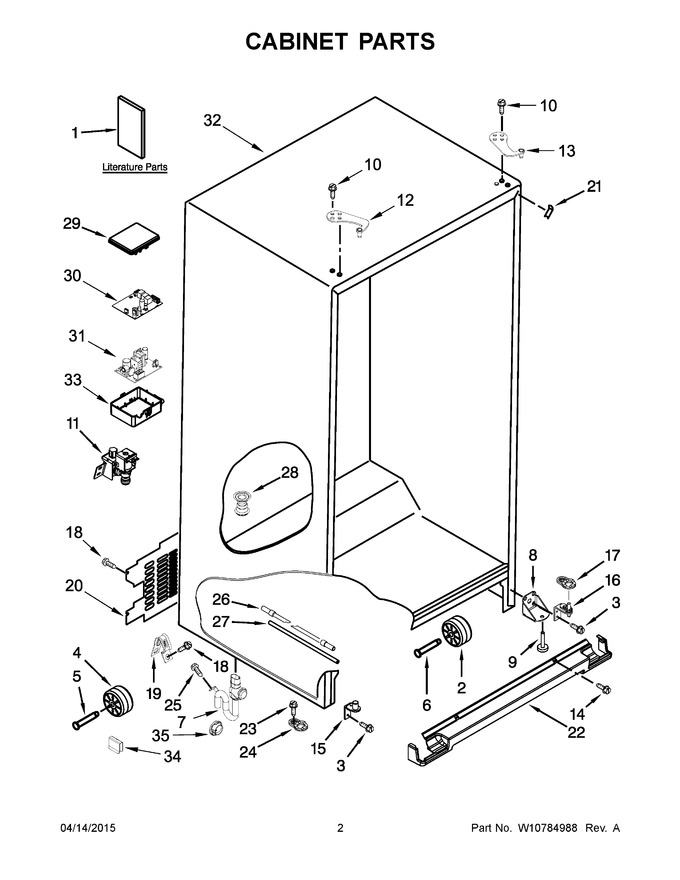

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10416733 | Use & Care Guide |
|
- | |||||
| 2 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 8.40 | |||||
| 4 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 6 | W11208384 | Rivet, Roller (Replaces: 981125) |
|
$ 18.73 | |||||
| 7 | W11519143 | Tube, Drain (Replaces: W10369091) |
|
$ 38.35 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 66.31 | |||||
| 9 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.84 | |||||
| 11 | WPW10238100 | Valve, Inlet (Replaces: W10498992) |
|
Immediately | $ 210.55 | ||||
| 12 | W11590581 | Hinge, Top (grey) (Replaces: W10673327) |
|
$ 24.93 | |||||
| 13 | W11409290 | Hinge, Top (grey) (Replaces: W10611065) |
|
$ 70.48 | |||||
| 14 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 8.18 | ||||
| 15 | W11293374 | Hinge, Bottom (grey) (Replaces: W10249943) |
|
$ 73.32 | |||||
| 16 | W11292872 | Hinge, Bottom (grey) (Replaces: W10666895) |
|
$ 72.09 | |||||
| 17 | W11311687 | Door Closer (grey) (Replaces: W10738911) |
|
$ 14.07 | |||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 19 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 20 | W10257238 | Cover, Unit (Replaces: W10333887) |
|
$ 103.04 | |||||
| 21 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 22 | WPW10713153 | Base Grill (grey) (Replaces: W10713153) |
|
Immediately | $ 135.52 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 24 | W10876191 | Door Closer (grey) (Replaces: W10257200) |
|
$ 17.98 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10279882) |
|
$ 114.23 | |||||
| 27 | WPW10279885 | Tube, Filter Outlet (Replaces: W10279885) |
|
$ 128.74 | |||||
| 28 | W10247979 | Fitting, Drain |
|
$ 67.82 | |||||
| 29 | W11226688 | Lid, Hv Box (Replaces: 12957702) |
|
$ 85.16 | |||||
| 30 | WPW10226427 | Control, Electronic (power Supply) (Replaces: W10226427) |
|
Immediately | $ 351.93 | ||||
| 31 | WPW10708285 | Electronic Control (Replaces: W10708285) |
|
$ 274.43 | |||||
| 32 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 33 | WPW10247993 | Box, Control (Replaces: W10247993) |
|
$ 119.11 | |||||
| 34 | W11545866 | Clip, Axle Retainer (Replaces: 2223388) |
|
$ 11.88 | |||||
| 35 | W11291510 | Assembly, Vacuum Relief Valve (Replaces: W10368332) |
|
$ 76.97 | |||||
| 1A | W10723764 | Service & Wiring Sheet |
|
- | |||||
| 1B | W10750983 | Energy Guide |
|
- |
