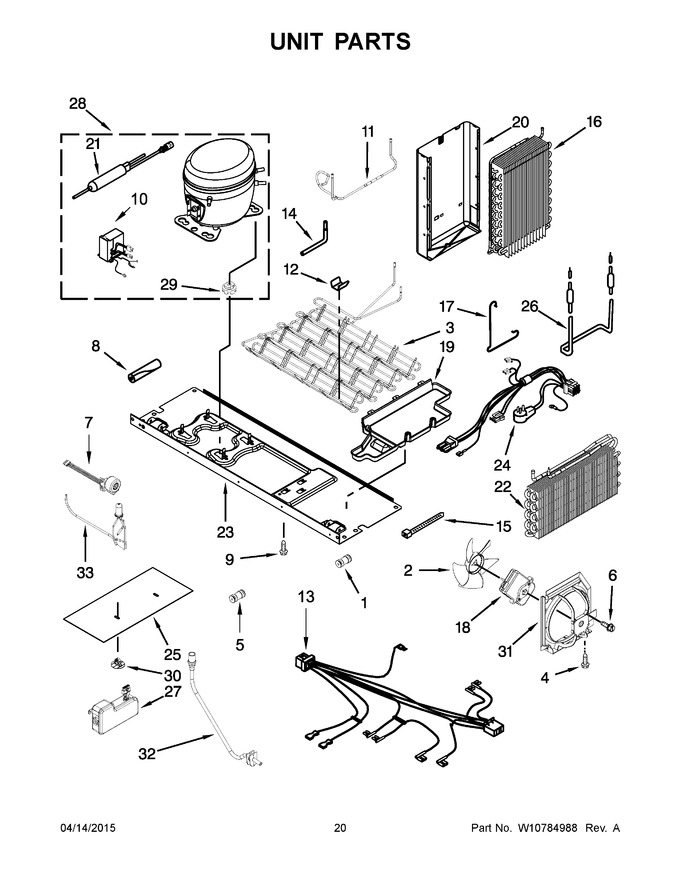

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | WP489399 | Screw (Replaces: W10142231) |
|
$ 7.30 | |||||
| 5 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10364560 | Coil, 3 Way Valve (Replaces: W10364560) |
|
$ 225.88 | |||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 10 | W11087200 | Assembly, Inverter Box (Replaces: W10710090) |
|
Immediately | $ 228.40 | ||||
| 11 | WPW10223328 | Tube, Suction (Replaces: W10223328) |
|
$ 92.85 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W11700341 | Assembly, Unit Wire (Replaces: W10679948) |
|
$ 102.07 | |||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WPW10239732 | Evaporator (Replaces: W10239732) |
|
Immediately | $ 352.65 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10527155) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator (Replaces: W10713147) |
|
$ 164.33 | |||||
| 20 | W10376319 | Shield, Heat (Replaces: W10343824) |
|
$ 115.98 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | WPW10643261 | Evaporator, Dual-rc (Replaces: W10643261) |
|
Immediately | $ 343.44 | ||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | WPW10261232 | Cord, Power (Replaces: W10261232) |
|
$ 66.90 | |||||
| 25 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 26 | W10857624 | Heater, Defrost (Replaces: W10495968) |
|
$ 141.75 | |||||
| 27 | W11038857 | Supply, Led Power (Replaces: W10724241) |
|
$ 363.91 | |||||
| 28 | W10779331 | Compressor (Replaces: W10695094) |
|
$ 1,044.35 | |||||
| 29 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 30 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 31 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 32 | W11409190 | Tube, Drain (Replaces: W10223368) |
|
Immediately | $ 65.34 | ||||
| 33 | W11590197 | Assembly, Valve Body (Replaces: W10331270) |
|
Immediately | $ 114.11 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | SF5516 | Valve, Access (Replaces: 978026) |
|
Immediately | $ 18.94 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
