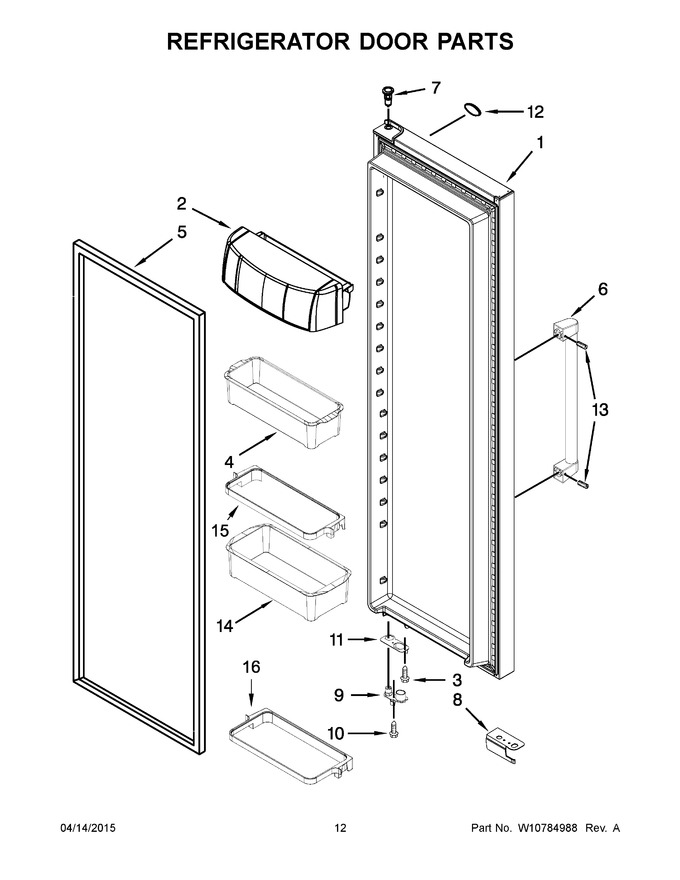

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10637819		Refrigerator Door (includes Item 5) (stainless)   (Replaces: W10637819)				$ 1,334.54
2	WPW10324760		Assembly, Utility Compartment   (Replaces: W10324760)				$ 85.60
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10316461		Door Bin, Shallow   (Replaces: W10316461)				$ 73.74
5	W10355588		Gasket, Door (grey)   (Replaces: W10249918)				$ 319.21
6	W10319123		Handle, Door (stainless)				$ 65.29
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
8	W11661847		Cover, Door Stop (grey)   (Replaces: W10257218)			Immediately	$ 31.71
9	WPW10257203		Thimble (grey)   (Replaces: W10257203)				$ 12.96
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop   (Replaces: W10367462)				$ 80.24
12	WPW10320959		Nameplate (stainless)   (Replaces: W10320959)				$ 102.43
13	W10320946		Set Screw		Appelez-nous	-
14	WPW10316457		Bin, Door Gallon   (Replaces: W10316457)			Immediately	$ 98.69
15	WPW10494333		Frame, Shallow Door Bin   (Replaces: W10494333)				$ 221.92
16	WPW10494334		Frame, Gallon Door Bin   (Replaces: W10494334)				$ 266.97
