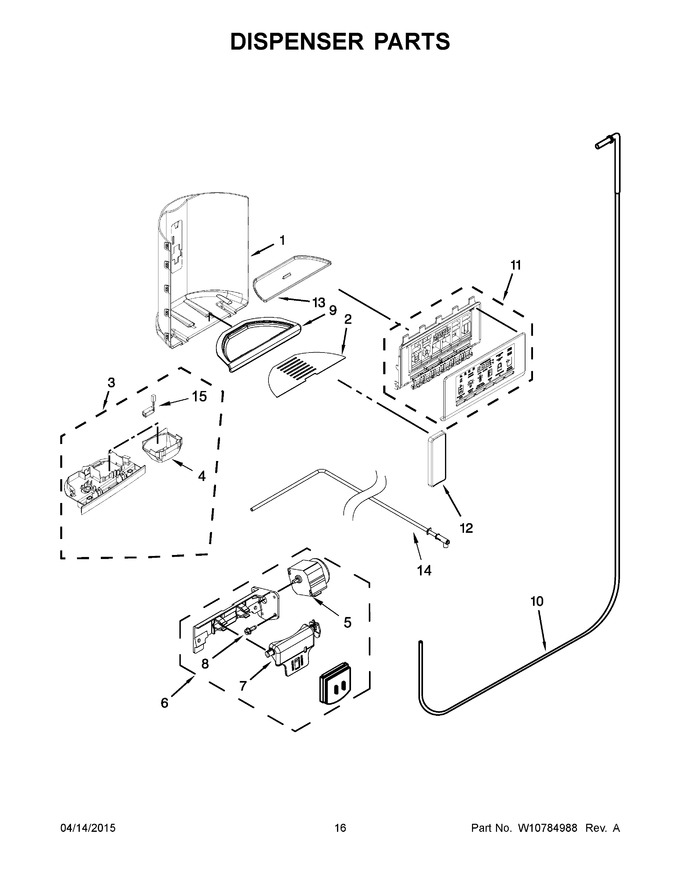

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10317270		Grate, Drip Tray   (Replaces: W10317270)				$ 75.65
3	W10353593		Assembly, Seperator				$ 135.48
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W11130210		Assembly, Ice Door   (Replaces: W10347633)				$ 160.56
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WPW10317261		Tray, Drip (stainless)   (Replaces: W10317261)				$ 83.76
10	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84
11	WPW10757195		Assembly, User Interface   (Replaces: W10757195)				$ 403.59
12	WPW10346924		Pad Assembly (grey)   (Replaces: W10346924)			Immediately	$ 289.65
13	W10859920		Drip Tray, Insert (grey)   (Replaces: W10317276)				$ 67.52
14	W11669938		Assembly, Spigot   (Replaces: W10386774)				$ 86.58
15	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
