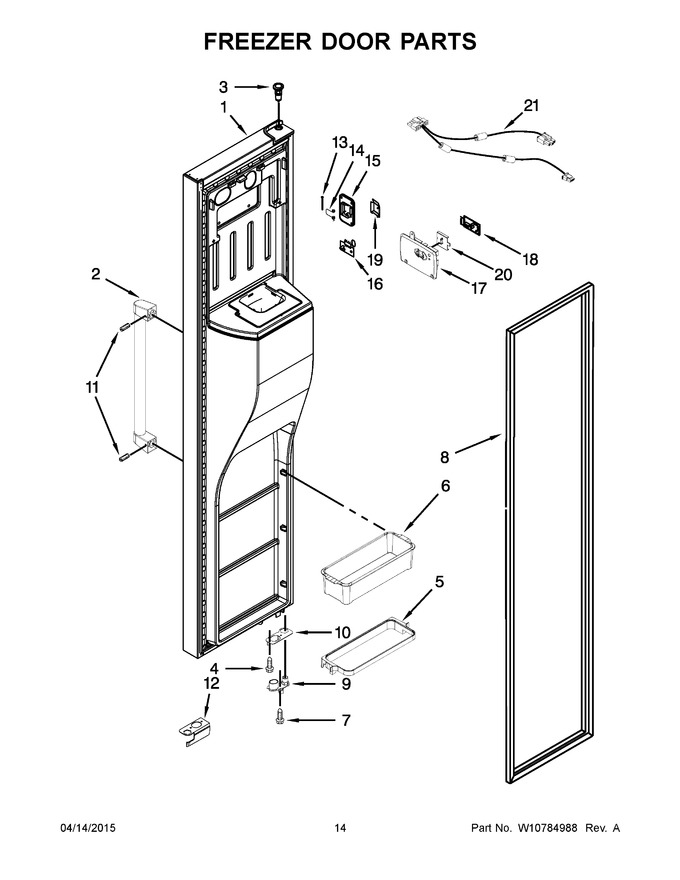

08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10738625		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W10738625)		Appelez-nous	-
2	W10319123		Handle, Door (stainless)				$ 65.29
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10494336		Frame, Door Bin   (Replaces: W10494336)				$ 243.61
6	WPW10434529		Door Bin   (Replaces: W10434529)				$ 77.78
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	W10355591		Gasket, Door (grey)   (Replaces: W10249919)			Immediately	$ 327.46
9	WPW10257206		Thimble (grey)   (Replaces: W10257206)			Immediately	$ 13.18
10	W11293380		Bracket, Door Stop   (Replaces: W10247907)				$ 69.21
11	W10320946		Set Screw		Appelez-nous	-
12	WPW10632062		Cover, Door Stop (grey)   (Replaces: W10632062)				$ 7.55
13	WP2198634		Pin, Door   (Replaces: 2198634)				$ 18.65
14	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
15	W10258502		Cover, Emitter				$ 89.74
16	W10870822		Board, Emitter Circuit   (Replaces: W10518659)			Immediately	$ 222.54
17	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 44.50
18	W11813704		Board, Receiver Circuit   (Replaces: W10518658)			Immediately	$ 328.97
19	WPW10258520		Door, Emitter   (Replaces: W10258520)				$ 79.65
20	W10258540		Slide, Icemaker Shut Off				$ 11.15
21	W10411699		Harness, Emitter And Receiver				$ 152.79
