SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Control Panel Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Icemaker Parts


15 - Optional Parts

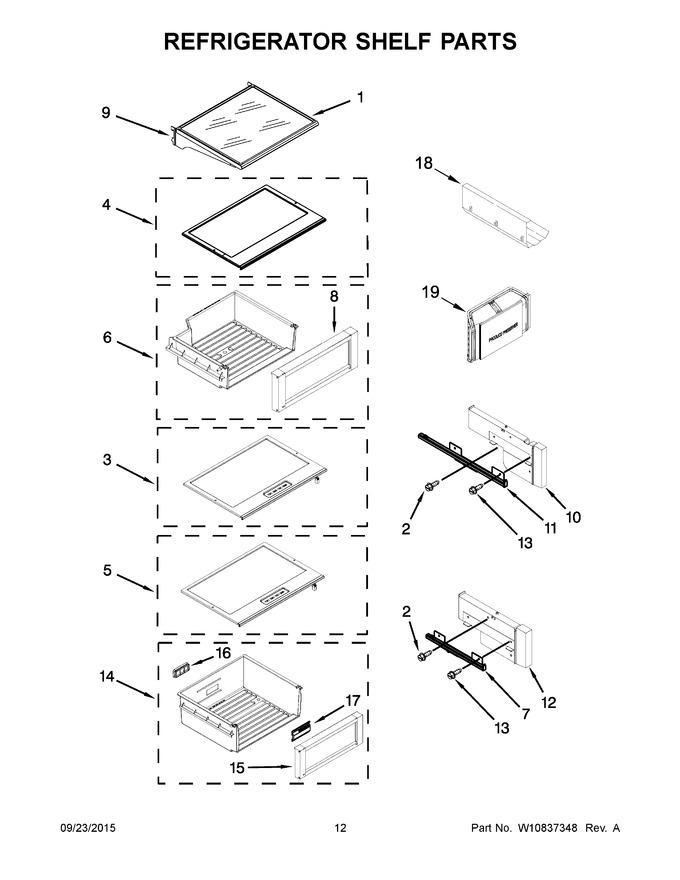

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187538		Assembly, Shelf   (Replaces: W10187538)				$ 409.83
2	WP8533928		Screw (left Hand)   (Replaces: 8533928)			Immediately	$ 8.26
3	W11370879		Assembly, Crisper Cover (upper)   (Replaces: W10789236)				$ 560.29
4	W10836033		Assembly, Meat Pan Cover   (Replaces: W10785392)				$ 291.01
5	W10789235		Assembly, Crisper Cover (lower)				$ 750.39
6	W10884292		Assembly, Meat Pan   (Replaces: W10789212)				$ 394.64
7	W10844011		Slide, Meat Pan (left Hand)   (Replaces: W10794953)				$ 320.20
8	W10881984		Front, Meat Pan   (Replaces: W10789220)				$ 358.81
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
10	W10769876		Spacer, Crisper			Immediately	$ 241.24
11	W10844010		Slide, Crisper (left Hand)   (Replaces: W10794952)			Immediately	$ 343.11
12	W10769855		Spacer, Meat		Appelez-nous	-
13	W10215666		Screw (right Hand)				$ 9.53
14	W10884291		Assembly, Crisper Pan   (Replaces: W10732457)			Immediately	$ 432.26
15	W10881986		Front, Crisper Pan   (Replaces: W10789216)		Appelez-nous	-
16	2307810		Duct, Deli Pan   (Replaces: W10787392)		Appelez-nous	-
17	W10787391		Deflector, Air		Appelez-nous	-
18	W10701859		Rack, Wine				$ 21.53
19	W10593207		Assembly, Produce Preserver		Appelez-nous	-
11A	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11
7A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 342.94
