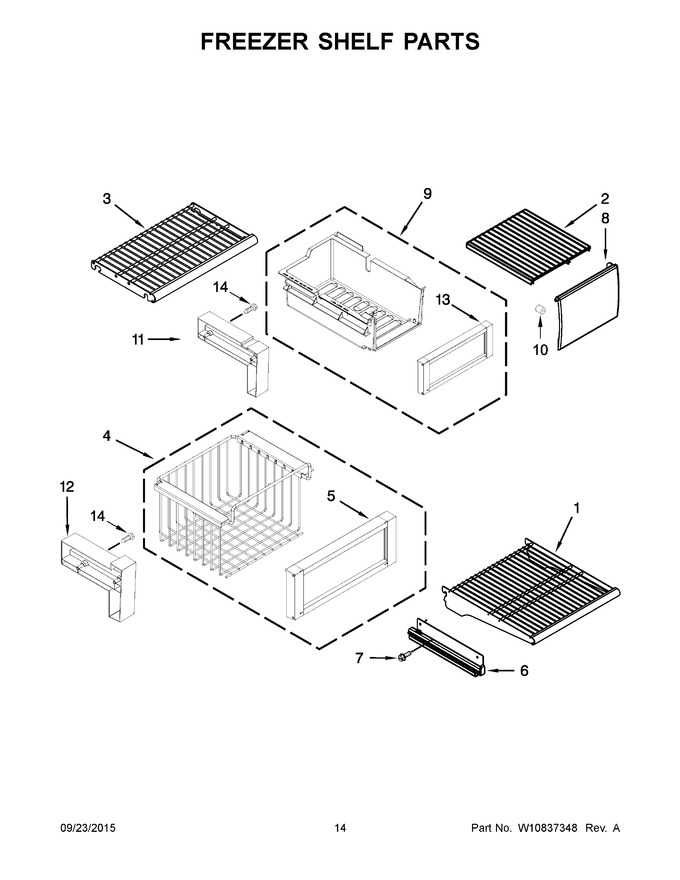

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10759087		Shelf, Wire				$ 113.01
2	W10777655		Cover, Shelf			Immediately	$ 110.43
3	W10759067		Shelf, Fixed				$ 109.56
4	W10794061		Assembly, Freezer Basket		Appelez-nous	-
5	W10789203		Assembly, Basket Front				$ 229.09
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
8	W10786630		Door, Ice		Appelez-nous	-
9	W10789209		Assembly, Ice Bucket		Appelez-nous	-
10	W10785704		Spacer, Ice Door				$ 14.52
11	W10769828		Spacer, Ice				$ 106.50
12	W10769705		Spacer, Basket				$ 26.53
13	W10789211		Assembly, Ice Bucket Front		Appelez-nous	-
14	W10784931		Screw (black)		Appelez-nous	-
6A	2259317		Slide, Basket (right Hand)				$ 233.29
