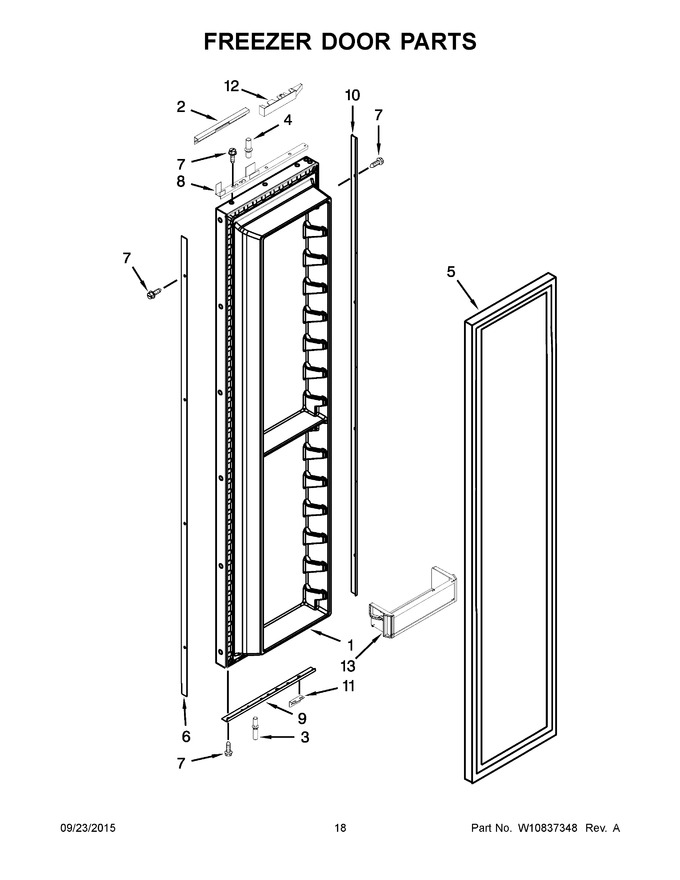

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633028 | Door, Freezer (includes Item 5) (Replaces: W10783286) |
|
$ 1,523.76 | |||||
| 2 | W10775728 | Cover, Top Door |
|
$ 141.90 | |||||
| 3 | W11337869 | Pin, Bottom Door (Replaces: W10234206) |
|
$ 64.91 | |||||
| 4 | W10234194 | Pin, Top Door |
|
$ 17.66 | |||||
| 5 | W10800818 | Gasket, Door (black) (Replaces: W10749269) |
|
Immediately | $ 382.37 | ||||
| 6 | W10749306 | Trim, Handle Side Door (charcoal) |
|
$ 214.84 | |||||
| 7 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 8 | W10749275 | Trim, Top Door |
|
$ 218.90 | |||||
| 9 | W10749618 | Trim, Bottom Door |
|
$ 145.27 | |||||
| 10 | W10749614 | Trim, Hinge Side Door (charcoal) |
|
$ 227.23 | |||||
| 11 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 39.81 | |||||
| 12 | W10606813 | Insert, Arm Door Top (grey) |
|
Immediately | $ 36.38 | ||||
| 13 | W10529451 | Bin, Shallow |
|
$ 389.68 | |||||
| 12A | W10606814 | Insert, Arm Door Bottom (grey) |
|
$ 34.47 |
