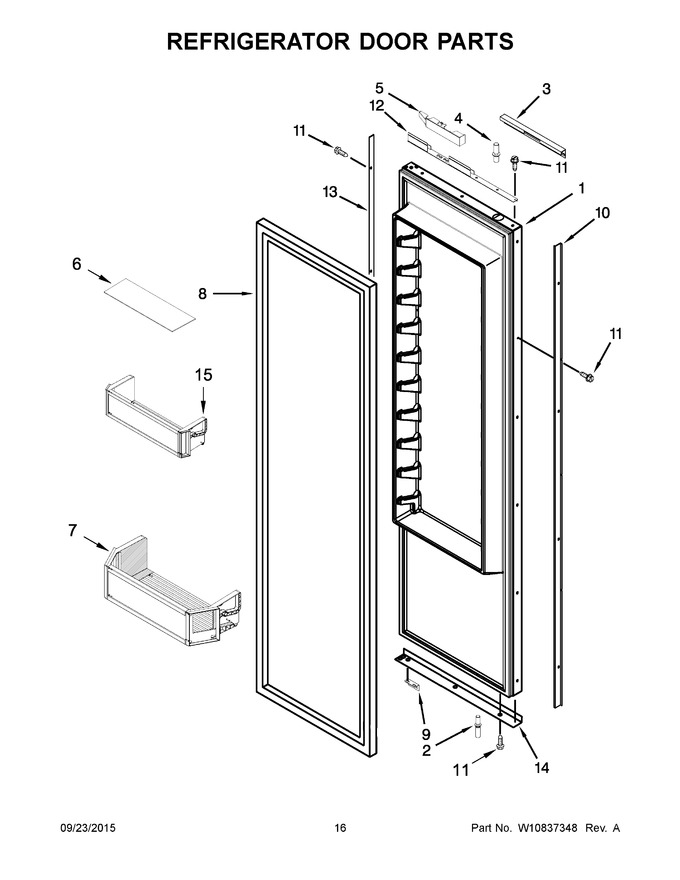

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11797635 | Door, Refrigerator (includes Item 8) (Replaces: W10783287) |
|
$ 936.03 | |||||
| 2 | W11337869 | Pin, Bottom Door (Replaces: W10234206) |
|
$ 64.91 | |||||
| 3 | W10775726 | Cover, Top Door |
|
$ 158.50 | |||||
| 4 | W10234194 | Pin, Top Door |
|
$ 17.66 | |||||
| 5 | W10606813 | Insert, Door Arm Top (grey) |
|
Immediately | $ 36.38 | ||||
| 6 | W10746024 | Mat, Door Bin (shallow) |
|
- | |||||
| 7 | W11350968 | Bin, Gallon Door (Replaces: W10594313) |
|
$ 324.60 | |||||
| 8 | W10800810 | Gasket, Door (black) (Replaces: W10776012) |
|
Immediately | $ 352.36 | ||||
| 9 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 39.81 | |||||
| 10 | W10755284 | Trim, Handle Side Door (charcoal) |
|
$ 222.36 | |||||
| 11 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 12 | W10776481 | Trim, Top Door |
|
$ 234.82 | |||||
| 13 | W10749614 | Trim, Hinge Side Door (charcoal) |
|
$ 227.23 | |||||
| 14 | W10755292 | Trim, Bottom Door |
|
- | |||||
| 15 | W10529454 | Bin, Shallow Door |
|
$ 276.35 | |||||
| 5A | W10606814 | Insert, Door Arm Bottom (grey) |
|
$ 34.47 | |||||
| 6A | W10746029 | Mat, Door Bin (gallon) |
|
- |
