SELECT A DIAGRAM
New Model Search:

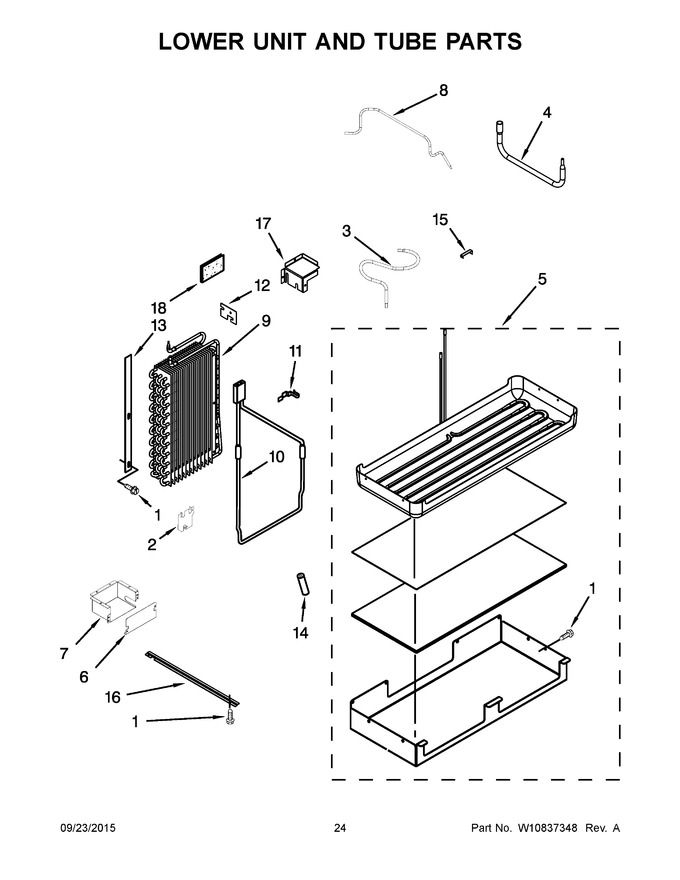

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 2 | W10157752 | Bracket, Heater |
|
- | |||||
| 3 | W10648568 | Tube, Oil Trap Suction |
|
Immediately | $ 29.62 | ||||
| 4 | W10388653 | Tube, Transition (drier/restrictor) |
|
Immediately | $ 40.48 | ||||
| 5 | W11623101 | Assembly, Drain Pan (Replaces: W10281063) |
|
Immediately | $ 394.02 | ||||
| 6 | W11756952 | Cover, Wire Box (Replaces: W10321048) |
|
- | |||||
| 7 | WPW10309012 | Cover, Wiring (Replaces: W10309012) |
|
$ 81.52 | |||||
| 8 | W10499597 | Tube, Discharge |
|
Immediately | $ 123.76 | ||||
| 9 | WPW10427993 | Evaporator (Replaces: W10427993) |
|
Immediately | $ 314.25 | ||||
| 10 | WPW10140162 | Heater, Defrost (Replaces: W10140162) |
|
Immediately | $ 170.92 | ||||
| 11 | 1113048 | Clamp, Heater |
|
- | |||||
| 12 | W10139908 | Cover, Evaporator Seal |
|
$ 13.06 | |||||
| 13 | W10432308 | Gasket, Evaporator |
|
- | |||||
| 14 | W11715935 | Grommet, Air Return (Replaces: W10413009) |
|
$ 13.58 | |||||
| 15 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 16 | 2320554 | Support, Drain Pan |
|
- | |||||
| 17 | W10160981 | Assembly, Air Return Bracket |
|
- | |||||
| 18 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 14.77 |
