01 - Cover Sheet


02 - Control Panel Parts


03 - Cabinet And Stirrer Parts


04 - Microwave Door Parts


05 - Internal Microwave Parts


06 - Oven Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts

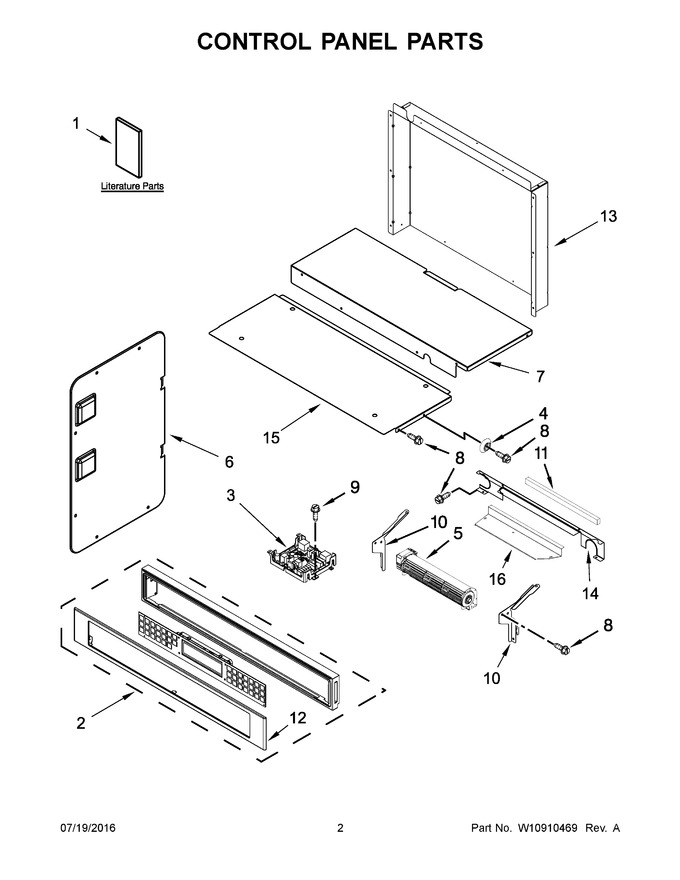

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725683		Instructions, Installation		Appelez-nous	-
2	W11093255		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10890569)			Immediately	$ 998.07
3	W11179310		Control (with Power Supply)   (Replaces: W10777215)			Immediately	$ 456.49
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 331.99
6	W10655467		Chassis, Combo Side				$ 79.07
7	W10283031		Chassis, Cover Top Back 30		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10588744		Skin, Control Panel (black)				$ 246.63
13	W10519703		Cover, Back Duct		Appelez-nous	-
14	W10618126		Chassis, Back Divider		Appelez-nous	-
15	W10318158		Chassis, Cover Top Front 30		Appelez-nous	-
16	W10681157		Cover, Combo Blower		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588746		Skin, Control Panel (white)		Appelez-nous	-
12B	W10588740		Skin, Control Panel (stainless)				$ 203.86
12C	W10776407		Skin, Control Panel (black Stainless)				$ 272.01
1A	W10643472		Guide, Use & Care (oven)		Appelez-nous	-
1B	W10643473		Guide, Use & Care (microwave Oven)		Appelez-nous	-
1C	W10756611		Sheet, Tech (english)		Appelez-nous	-
1D	W10756612		Sheet, Tech (french)		Appelez-nous	-
2A	W10916779		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10890566)				$ 602.20
2B	W11093254		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10890568)			Immediately	$ 963.27
2C	W10916778		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W10890563)				$ 570.39
NI	4448664		Clamp, Conduit				$ 20.39
NI	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
NI	4454949		Holder, Fuse				$ 90.70
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11157180		Harness, Main   (Replaces: W10789996)				$ 243.82
NI	W10789995		Harness, Signal				$ 82.82
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 113.31
NI	W10603949		Harness, Communication				$ 150.54
NI	W10874060		Harness, Inverter   (Replaces: W10406103)				$ 141.63
NI	4450800		Screw, Grounding				$ 12.83
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
