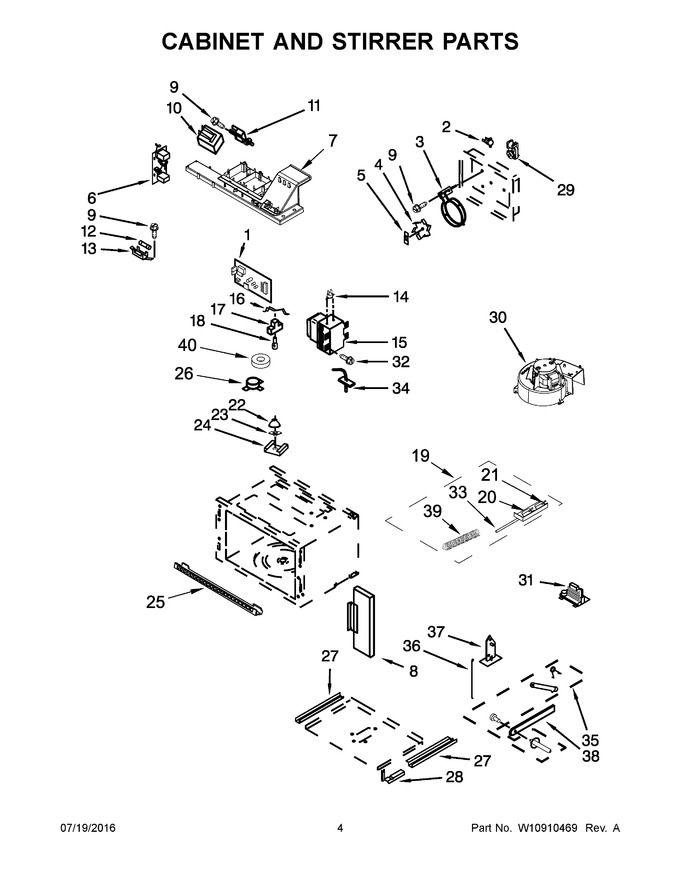

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10915648 | Manager, Appliance (Replaces: W10577815) |
|
Immediately | $ 267.43 | ||||
| 2 | W11607085 | Sensor, Convection (Replaces: 423107845441) |
|
Immediately | $ 42.30 | ||||
| 3 | WPW10493735 | Heater, Convection Element (Replaces: 461967848711) |
|
Immediately | $ 105.23 | ||||
| 4 | W11512064 | Fan, Convection (Replaces: 461967001792) |
|
Immediately | $ 163.19 | ||||
| 5 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 57.68 | ||||
| 6 | W11398764 | Filter, Noise (Replaces: W10692851) |
|
Immediately | $ 194.81 | ||||
| 7 | 461967754821 | Duct, Magnetron |
|
$ 87.16 | |||||
| 8 | W10486208 | Trim, Side (left) (Replaces: 461967017491) |
|
$ 75.37 | |||||
| 9 | 461967825321 | Screw |
|
$ 12.13 | |||||
| 10 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 343.70 | ||||
| 11 | 461967842541 | Thermoactuator |
|
$ 72.29 | |||||
| 12 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 13 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 83.15 | |||||
| 14 | W11233913 | Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 148.65 | ||||
| 15 | W11346197 | Magnetron (Replaces: 461967847321) |
|
Immediately | $ 271.25 | ||||
| 16 | W10465869 | Spring, Lamp |
|
Immediately | $ 98.82 | ||||
| 17 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 74.11 | |||||
| 18 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 32.22 | ||||
| 19 | W11449277 | Harness, Convection (Replaces: W10371813) |
|
Immediately | $ 148.59 | ||||
| 20 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 52.40 | ||||
| 21 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 22 | 423107022541 | Reflector |
|
$ 85.90 | |||||
| 23 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 99.83 | ||||
| 24 | W11440819 | Clip, Spring (Replaces: 461967010591) |
|
$ 21.90 | |||||
| 25 | 461968973241 | Vent, Top Microwave |
|
$ 67.46 | |||||
| 26 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| 27 | 8205707 | Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 68.79 | ||||
| 28 | W10874474 | Hinge, Door (Replaces: 461968979601) |
|
Immediately | $ 60.11 | ||||
| 29 | W11534564 | Motor, Convection Fan (Replaces: 461967848251) |
|
Immediately | $ 100.67 | ||||
| 30 | W11344874 | Assembly, Cooling Fan (Replaces: 461968969271) |
|
Immediately | $ 182.61 | ||||
| 31 | W10217711 | Inverter (Replaces: W10468206) |
|
Immediately | $ 289.63 | ||||
| 32 | 8205656 | Screw (Replaces: 461967825381) |
|
- | |||||
| 33 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 6.97 | ||||
| 34 | W11208292 | Sensor, Termperature (Replaces: 241960100002) |
|
$ 154.42 | |||||
| 35 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 135.31 | ||||
| 36 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 68.86 | |||||
| 37 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 14.78 | ||||
| 38 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 95.75 | |||||
| 39 | W11715912 | Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 7.15 | ||||
| 40 | W10769147 | Sealing, Lamp |
|
Immediately | $ 23.32 | ||||
| 8A | W10367739 | Trim, Side (right) |
|
$ 95.17 | |||||
| NI | W11356954 | Miscellaneous Parts, Harness, Fan & Turntable (Replaces: W10389372) |
|
$ 141.67 |
