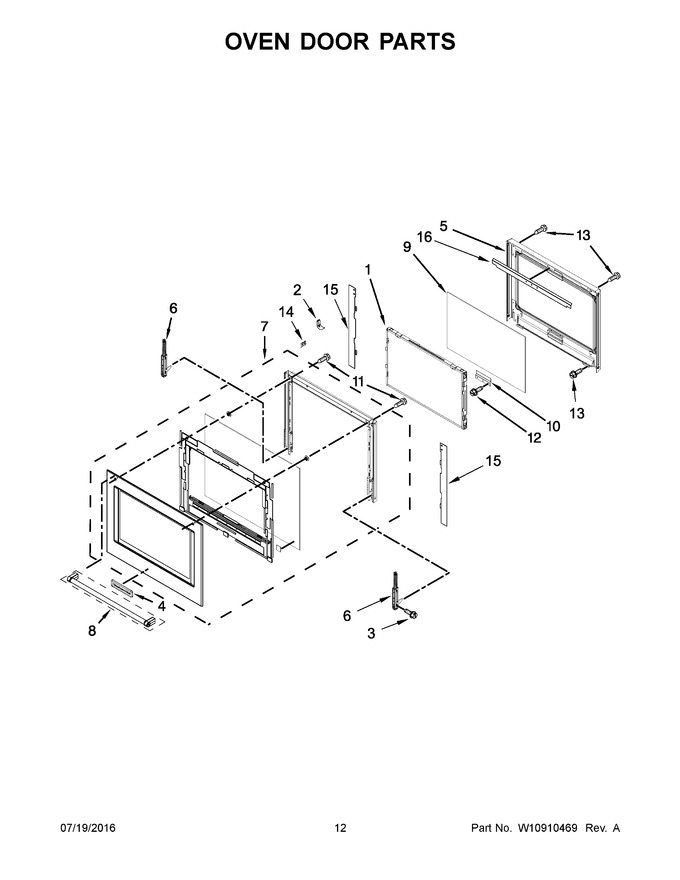

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 307.67 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 157.87 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.75 | ||||
| 4 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 72.57 | ||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 349.23 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10639069) |
|
Immediately | $ 104.32 | ||||
| 7 | W11354841 | Assembly, Door (black) (Replaces: W10615239) |
|
$ 800.37 | |||||
| 8 | W11518518 | Assembly, Handle (stainless) (Replaces: W10541913) |
|
$ 220.71 | |||||
| 9 | W10827059 | Glass, Inner (Replaces: W10678524) |
|
$ 190.29 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 156.06 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.88 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 167.75 | ||||
| 15 | W10687815 | Extension, Side Rail (left) |
|
$ 68.27 | |||||
| 16 | W10669415 | Shield, Door Liner |
|
$ 66.24 | |||||
| 15A | W10687814 | Extension, Side Rail (right) |
|
$ 68.27 | |||||
| 7A | W11354849 | Assembly, Door (white) (Replaces: W10615240) |
|
$ 909.64 | |||||
| 7B | W11354870 | Assembly, Door (stainless) (Replaces: W10615236) |
|
Immediately | $ 917.28 | ||||
| 7C | W11354880 | Assembly, Door (black Stainless) (Replaces: W10697969) |
|
$ 1,053.24 |
