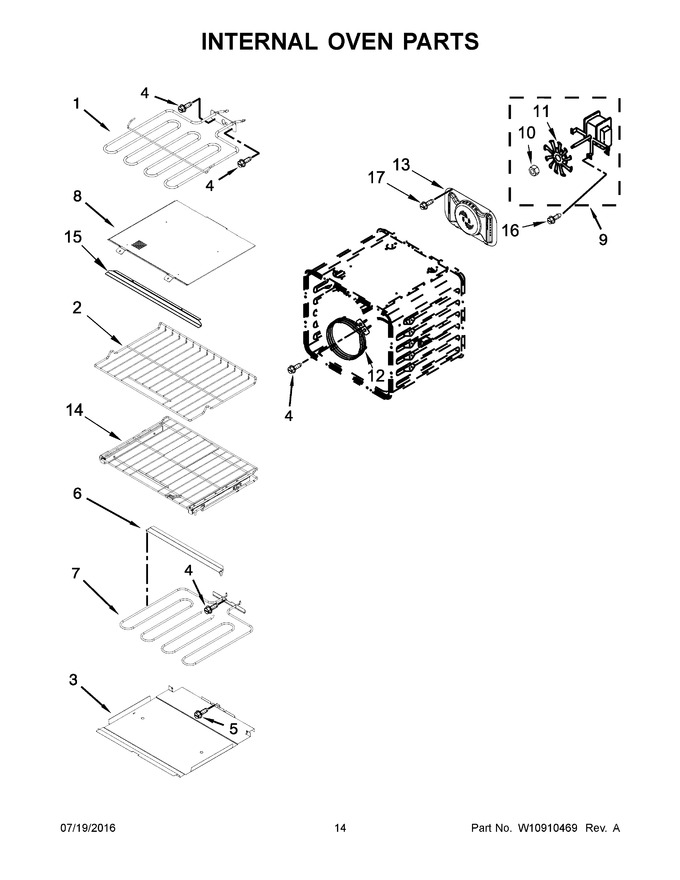

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 182.96 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 102.53 | ||||
| 8 | W11290999 | Shield, Broil Element (Replaces: W10318164) |
|
$ 210.95 | |||||
| 9 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 10 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 12 | W11678579 | Element, Convection (Replaces: W10546519) |
|
Immediately | $ 121.00 | ||||
| 13 | W11234761 | Baffle, Bow Tie (Replaces: W10359277) |
|
$ 237.00 | |||||
| 14 | W11718046 | Rack, Sliding (Replaces: W10554531) |
|
Immediately | $ 173.45 | ||||
| 15 | W10588738 | Shield, Broil Front |
|
$ 100.55 | |||||
| 16 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 17 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 13A | W10725944 | Baffle, Bow Tie (for Black Stainless Models) |
|
$ 166.32 |
