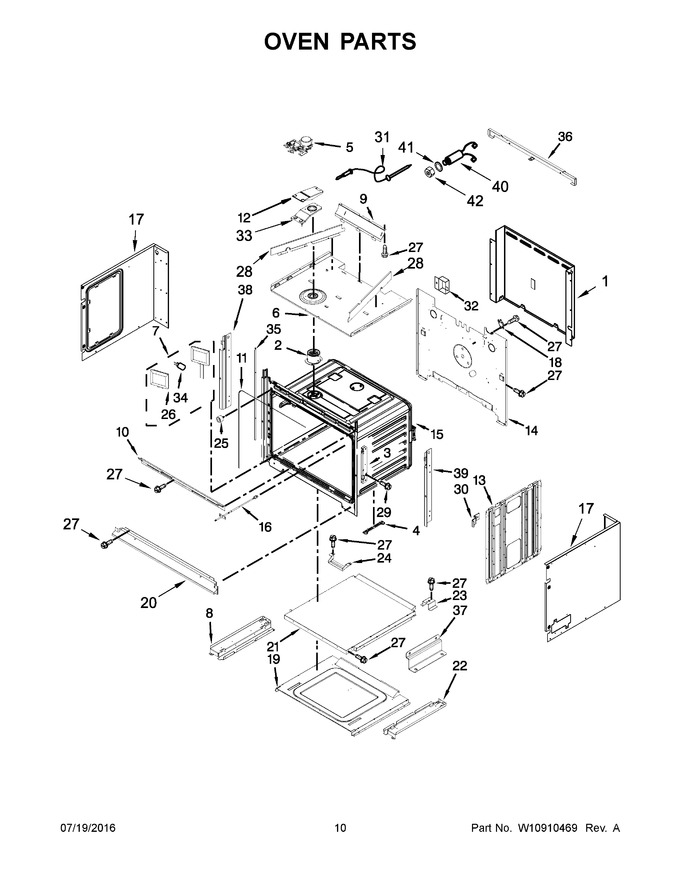

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519707		Cover, Back Duct				$ 74.08
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 24.32
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 54.75
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 16.43
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10813743		Top, Chassis		Appelez-nous	-
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 91.74
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower   (Replaces: W10641572)			Immediately	$ 161.70
10	W10495154		Vent, Center 30				$ 189.07
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 72.35
12	W10616810		Cover, Vent Exhaust				$ 66.62
13	W10318190		Side, Chassis				$ 117.20
14	W10813703		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	W10655466		Chassis, Combo Side (left)				$ 80.62
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11238787		Base, Chassis   (Replaces: W10834867)				$ 333.00
20	WPW10327373		Assembly, Bottom Vent (black)   (Replaces: W10327373)				$ 308.58
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 209.57
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 10.49
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 91.74
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
28	W10681156		Deflector, Chassis		Appelez-nous	-
29	WPW10254050		Screw   (Replaces: W10254050)				$ 8.11
30	W10347649		Spacers, Front				$ 14.30
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Vent Exhaust				$ 30.70
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
35	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 36.89
36	W10283022		Support, Crossbar				$ 77.45
37	W10283024		Side, Bracket				$ 75.10
38	W10360517		Rail, Side (left)				$ 80.27
39	W11461034		Rail, Side (right)   (Replaces: W10360519)				$ 58.40
40	W11220388		Jack, Meat Probe   (Replaces: W10696226)			Immediately	$ 66.31
41	WP9755547		Washer, Lock   (Replaces: 9755547)				$ 6.10
42	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 6.95
17A	W10283029		Chassis, Combo Side (right)				$ 81.31
20A	WPW10506348		Assembly, Bottom Vent (white)   (Replaces: W10506348)				$ 170.75
20B	WPW10351279		Assembly, Bottom Vent (stainless)   (Replaces: W10351279)			Immediately	$ 266.95
20C	W10723091		Assembly, Bottom Vent (black Stainless)				$ 65.21
35A	W10536162		Trim, Side (black (right))   (Replaces: W10344482)				$ 36.89
38A	W10710302		Rail, Side (left) (for Black Stainless Models)				$ 78.24
39A	W10710309		Rail, Side (right) (for Black Stainless Models)				$ 78.24
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 118.92
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 118.13

    View Diagram in Separate Window       Print Part List
