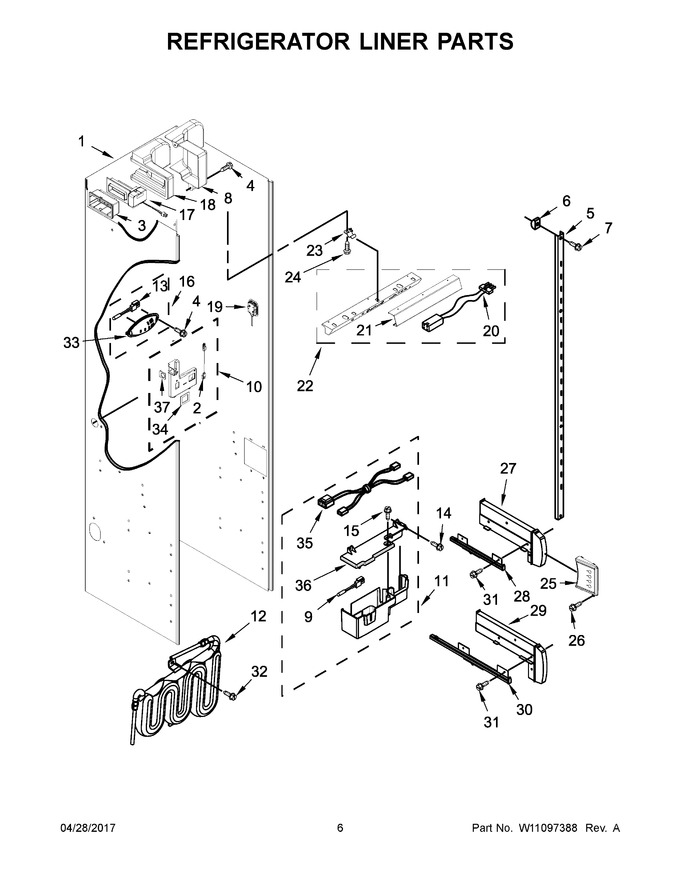

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 103.58 | ||||
| 3 | W10832844 | Duct, Air |
|
$ 109.83 | |||||
| 4 | W10678210 | Screw (black) |
|
$ 19.80 | |||||
| 5 | W10749139 | Ladder (long) |
|
$ 184.31 | |||||
| 6 | 2259445 | Support, Ladder |
|
- | |||||
| 7 | W10678207 | Screw (Replaces: W10832438) |
|
$ 16.43 | |||||
| 8 | W10782827 | Cover, Air Diffuser |
|
- | |||||
| 9 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 88.41 | |||||
| 10 | W10795347 | Assembly, Spacer |
|
$ 153.38 | |||||
| 11 | W10785656 | Assembly, Control Baffle |
|
$ 389.57 | |||||
| 12 | W10645131 | Reservoir, Water |
|
$ 288.33 | |||||
| 13 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 14 | W10784931 | Screw (black) |
|
- | |||||
| 15 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 16 | W10784036 | Assembly, Thermistor |
|
Immediately | $ 106.96 | ||||
| 17 | WP2221296 | Assembly, Air Baffle (Replaces: 2221296) |
|
Immediately | $ 412.58 | ||||
| 18 | W10797519 | Assembly, Air Diffuser |
|
$ 302.98 | |||||
| 19 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 333.96 | ||||
| 20 | W10458299 | Wire, Jumper |
|
$ 28.81 | |||||
| 21 | W10775706 | Bracket, Control Box |
|
$ 152.58 | |||||
| 22 | W11357536 | Assembly, Control Box (Replaces: W10785724) |
|
Immediately | $ 903.35 | ||||
| 23 | 2317000 | Clip, Control Box |
|
- | |||||
| 24 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 25 | W10836032 | Board, Ingredient Care Center Display (Replaces: W10785730) |
|
$ 612.30 | |||||
| 26 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 27 | W10783742 | Spacer, Meat Pan |
|
- | |||||
| 28 | W10844011 | Slide, Meat Pan (left Hand) |
|
$ 320.20 | |||||
| 29 | W10769876 | Spacer, Crisper |
|
Immediately | $ 241.24 | ||||
| 30 | W10844010 | Slide, Crisper (left Hand) |
|
Immediately | $ 343.11 | ||||
| 31 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 32 | W10141518 | Screw |
|
$ 9.54 | |||||
| 33 | W10784036 | Cover, Thermistor (Replaces: W10783891) |
|
Immediately | $ 106.96 | ||||
| 34 | 2259398 | Seal, Air Duct |
|
- | |||||
| 35 | 2310205 | Assembly, Meat Pan Wire |
|
- | |||||
| 36 | W10785658 | Lid, Baffle |
|
- | |||||
| 37 | W10795331 | Seal, Air Duct (round Hole) |
|
- | |||||
| 28A | W10732727 | Slide, Meat Pan (right Hand) |
|
Immediately | $ 342.94 | ||||
| 30A | W10732303 | Slide, Crisper (right Hand) |
|
Immediately | $ 343.11 | ||||
| 5A | W10794051 | Ladder (short) |
|
- |
