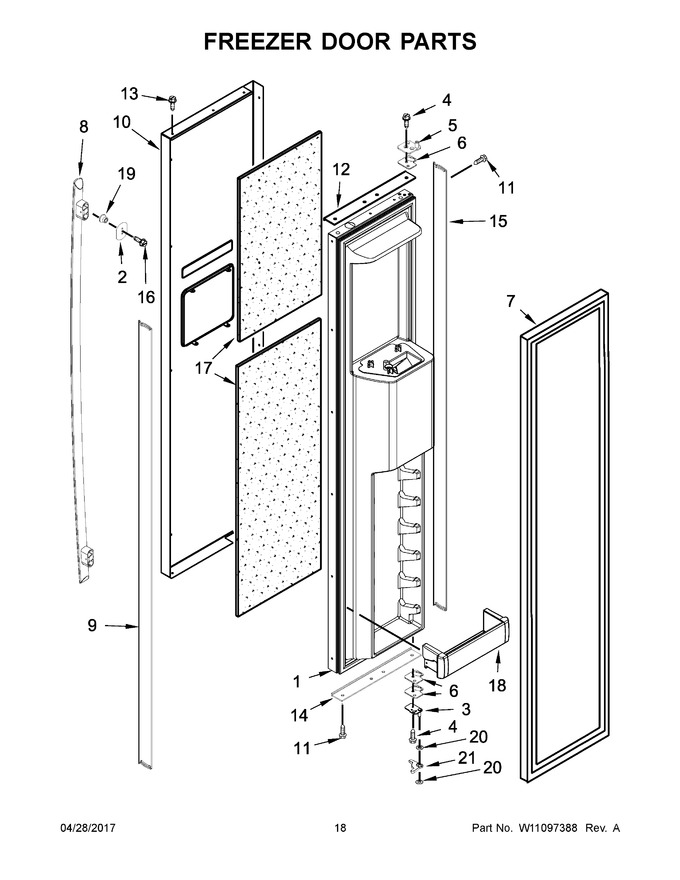

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10800815		Assembly, Freezer Door (includes Dispenser Parts)   (Replaces: W10783290)				$ 1,459.55
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W10800809		Gasket, Door (grey)   (Replaces: W10764833)			Immediately	$ 351.03
8	WPW10183428		Handle, Door (stainless)   (Replaces: W10183428)			Immediately	$ 337.11
9	W10758377		Spacer, Handle Side Door				$ 109.79
10	W10800819		Skin, Door   (Replaces: W10756220)				$ 1,002.66
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
12	W10758115		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10758142		Spacer, Door Skin (bottom)				$ 55.47
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W10159585		Filler, Door (top)		Appelez-nous	-
18	W10594374		Bin, Shallow		Appelez-nous	-
19	WPW10168981		Mount, Handle   (Replaces: W10168981)				$ 17.69
20	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
21	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
17A	W10159582		Filler, Door (bottom)		Appelez-nous	-
