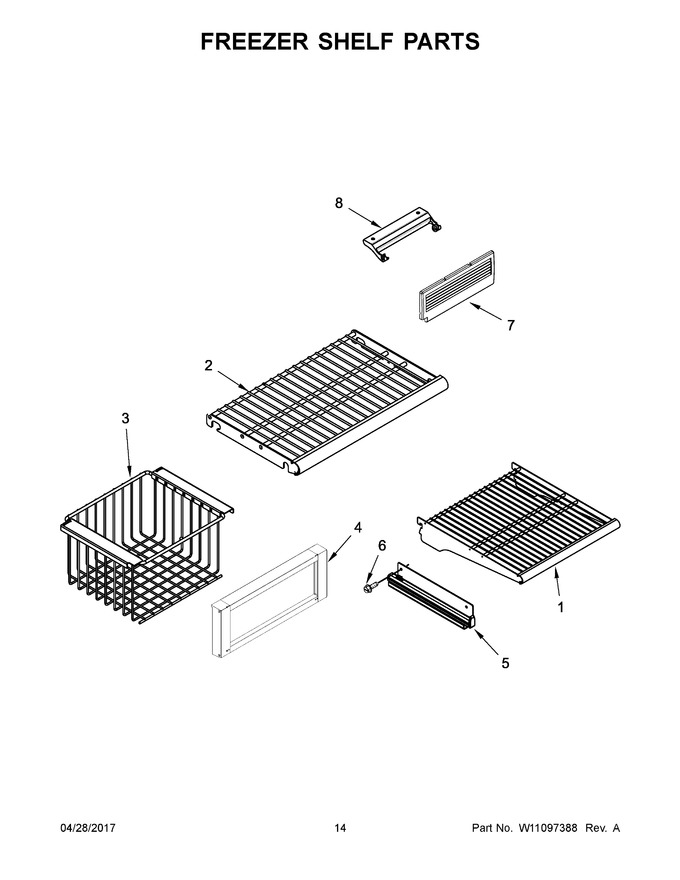

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11835072 | Shelf, Wire (Replaces: W10759084) |
|
Immediately | $ 286.41 | ||||
| 2 | W11835072 | Shelf, Fixed (Replaces: W10759069) |
|
Immediately | $ 286.41 | ||||
| 3 | W10767697 | Basket, Freezer |
|
- | |||||
| 4 | W10789203 | Assembly, Basket Front |
|
$ 229.09 | |||||
| 5 | WP2259318 | Slide, Basket (left Hand) (Replaces: 2259318) |
|
Immediately | $ 317.35 | ||||
| 6 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 7 | W10749553 | Cover, Icemaker |
|
$ 138.25 | |||||
| 8 | W11766462 | Bracket, Icemaker Cover (Replaces: W10749631) |
|
$ 31.15 | |||||
| 5A | 2259317 | Slide, Basket (right Hand) |
|
$ 233.29 |
