Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10658013 Assembly, Top Grille Special Order $ 372.30

2 W11735285 Cover, Unit   (Replaces: W10545068) In-Stock Immediately $ 205.97

3 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

4 2256466 Panel, Unit Back Special Order $ 327.22

5 W10694109 Cover, Unit Front Special Order $ 189.60

6 WPW10214168 Nameplate (stainless)   (Replaces: W10214168) Special Order $ 85.95

7 W10645086 Divider, Unit Air Special Order $ 102.80


    View Diagram in Separate Window     Print Icon   Print Part List

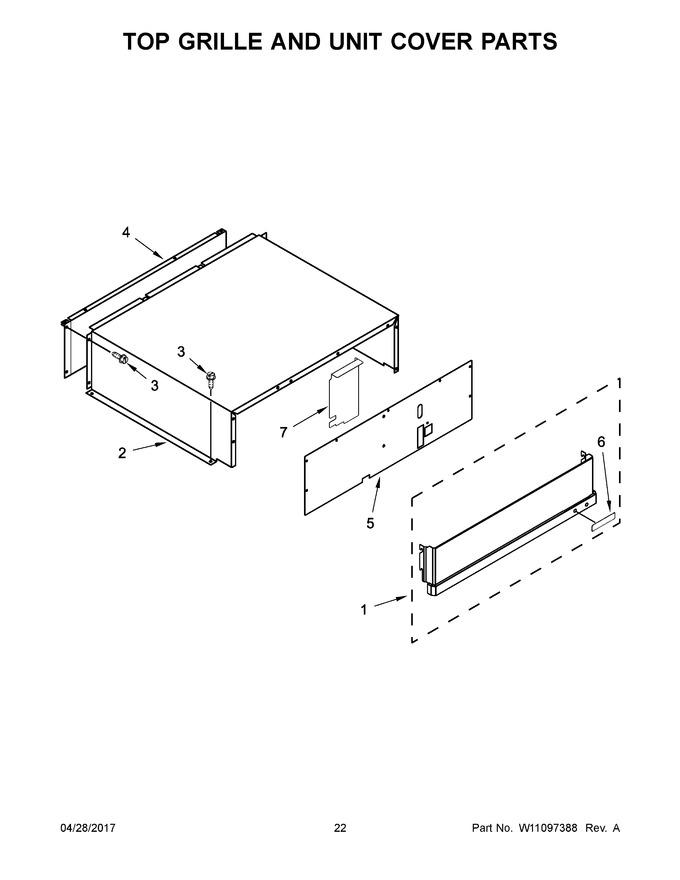

Diagram for JS42SSDUDE01
