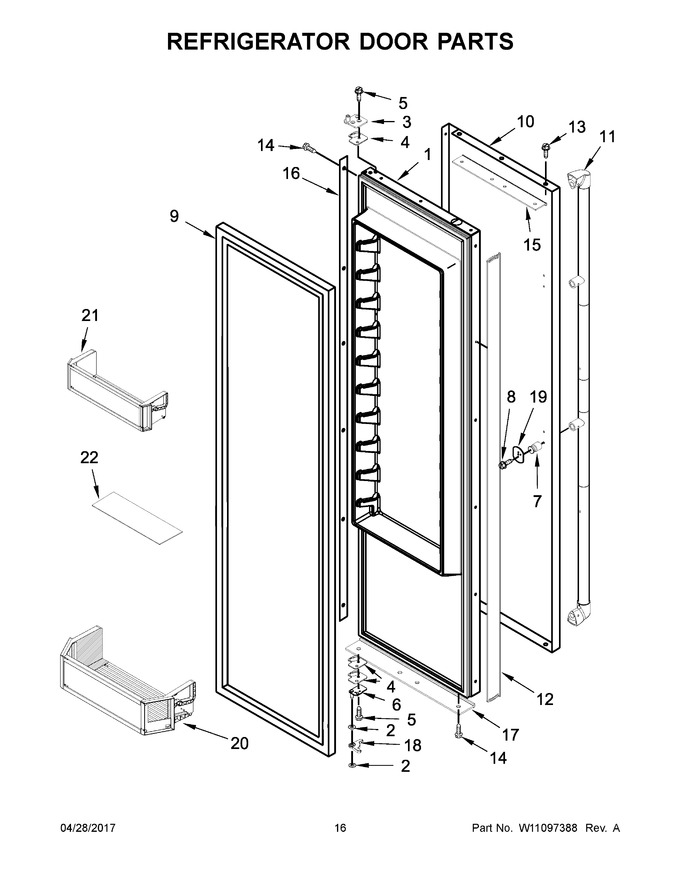

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11797636 | Door, Refrigerator (Replaces: W10783289) |
|
$ 884.49 | |||||
| 2 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Assembly, Hinge (bottom) |
|
Immediately | $ 91.01 | ||||
| 7 | WPW10168981 | Mount, Handle (Replaces: W10168981) |
|
$ 17.69 | |||||
| 8 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 9 | W10800817 | Gasket, Door (grey) (Replaces: W10776011) |
|
Immediately | $ 349.09 | ||||
| 10 | W11797604 | Skin, Door (Replaces: W10756462) |
|
$ 1,505.61 | |||||
| 11 | WPW10183428 | Handle, Door (stainless) (Replaces: W10183428) |
|
Immediately | $ 337.11 | ||||
| 12 | W10758377 | Spacer, Handle Side Door |
|
$ 109.79 | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | W10761892 | Spacer, Door Skin (top) |
|
- | |||||
| 16 | W10758378 | Spacer, Hinge Side Door |
|
- | |||||
| 17 | W10761895 | Spacer, Door Skin Bottom |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 19 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 20 | W11350966 | Bin, Gallon Door (Replaces: W10594311) |
|
$ 385.85 | |||||
| 21 | W10529453 | Bin, Shallow Door |
|
$ 243.29 | |||||
| 22 | W10746023 | Mat, Door Bin (shallow) |
|
- | |||||
| 22A | W10746027 | Mat, Door Bin (gallon) |
|
- |
