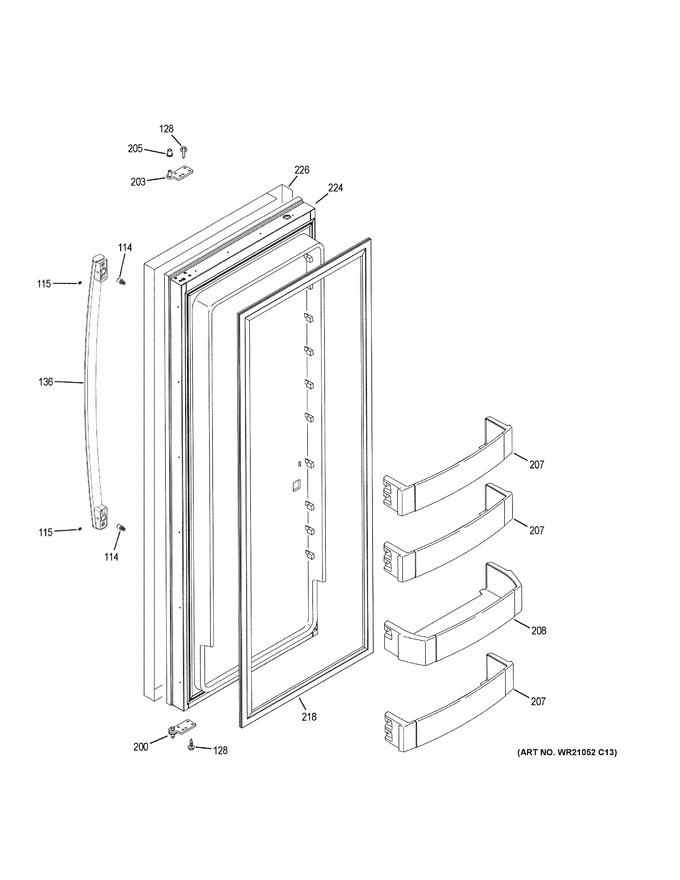

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 114 | WR01A01801 | Fastener Door Handle (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 115 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 6.35 | ||||
| 128 | WR01X21024 | Screw, 1/4-20 Tt Bht .87 |
|
- | |||||
| 136 | WR12X23647 | Arc Handle Asm Ff |
|
- | |||||
| 200 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 203 | WR13X10580 | Hinge Asm Door Top |
|
- | |||||
| 205 | WG03A00012 | Bushing Hinge Top (Replaces: WR02X10954) |
|
$ 49.33 | |||||
| 207 | WR71X25602 | Bin Door Asm 48 |
|
- | |||||
| 207 | WR71X25604 | Bin Door Asm 36/48 |
|
- | |||||
| 208 | WR71X25588 | Bin Asm Gallon 48 |
|
- | |||||
| 218 | WR24X10206 | Gasket Door |
|
- | |||||
| 224 | WR78X23183 | Door Foamed Asm Ff Sxs 48" |
|
- | |||||
| 226 | WR78X25899 | Wrap Ff Sxs Profile Cafe 48" |
|
- |
