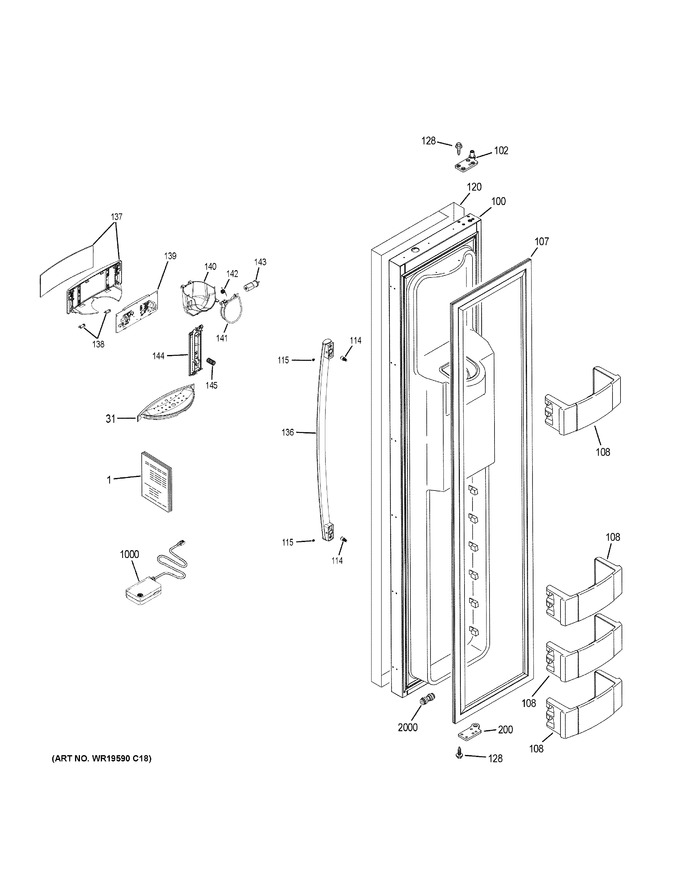

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-46562 | Pm Attention Installer |
|
- | |||||
| 1 | 31-51990 | Pm Mini Manual |
|
- | |||||
| 1 | 31-49057-1 | Pm Install Instructions |
|
- | |||||
| 1 | 49-60742 | Pm Owners Manual |
|
- | |||||
| 31 | WR17X25891 | Tray Recess Asm |
|
- | |||||
| 100 | WR78X26113 | Door Foam Asm Fz Sxs Dsp 48" |
|
- | |||||
| 102 | WR13X10238 | Top Sxs Fz Door Hinge As |
|
- | |||||
| 107 | WR24X10203 | Gasket Door |
|
- | |||||
| 108 | WR71X25604 | Bin Door Asm 36/48 |
|
- | |||||
| 108 | WR71X25602 | Bin Door Asm 48 |
|
- | |||||
| 114 | WR01A01801 | Fastener Door Handle (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 115 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 6.35 | ||||
| 120 | WR78X26114 | Wrap Fz Sxs Profile 48" |
|
- | |||||
| 128 | WR01X21024 | Screw, 1/4-20 Tt Bht .87 |
|
- | |||||
| 136 | WR12X23647 | Arc Handle Asm Ff |
|
- | |||||
| 137 | WR17X25503 | Display Cap Touch Asm Ss |
|
- | |||||
| 138 | WR02X13655 | Shield Led Light |
|
$ 19.05 | |||||
| 139 | WR55X26552 | Lcd Display Board |
|
- | |||||
| 140 | WR17X13099 | Funnel Ice |
|
- | |||||
| 141 | WR17X13057 | Duct Door Asm |
|
- | |||||
| 142 | WR01X11017 | Spring Duct Door |
|
- | |||||
| 143 | WR60X10344 | Motor Duct Door |
|
- | |||||
| 144 | WG03L00831 | Cover Paddle Asm Ss (Replaces: WR17X13060) |
|
$ 73.11 | |||||
| 145 | WR01X11027 | Spring |
|
- | |||||
| 200 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 1000 | WR55X24584 | Asm Acm Wifi Module |
|
- | |||||
| 2000 | WR02X24203 | Connector Water Line |
|
- |
