Diagram # Part Number Description Series Availability Ships Price Add to Cart
317 WR71X10813 Encapsulated Shelf Asm Appelez-nous -
374 WR32X25592 Pan Snack Asm 48 Appelez-nous -
376 WR02X12855 Snack Pan Wire Spt Asm48 Appelez-nous -
377 WR71X10816 Shelf Snack Pan Asm 48 Appelez-nous -
384 WR40X10038 Seal Pan Front Appelez-nous -
606 WR72X10369 Slide Inner Appelez-nous -
607 WR32X25935 Pan Veg Asm 48" Appelez-nous -
609 WR72X10250 Veg Pan Wire Support Appelez-nous -
614 WR32X10693 Shelf Asm Pan Top Appelez-nous -
615 WR02X12848 Pan Rear Seal 48 Appelez-nous -
617 WR72X10329 Pan Side Support Rh Appelez-nous -
621 WR72X10330 Pan Side Support Lh Appelez-nous -
4107 WG03L00743 Slide Outer   (Replaces: WR72X10366) Special Order $ 61.96

6174 WR01X10449 Screw 6x1/2 Pan Phil H/l Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

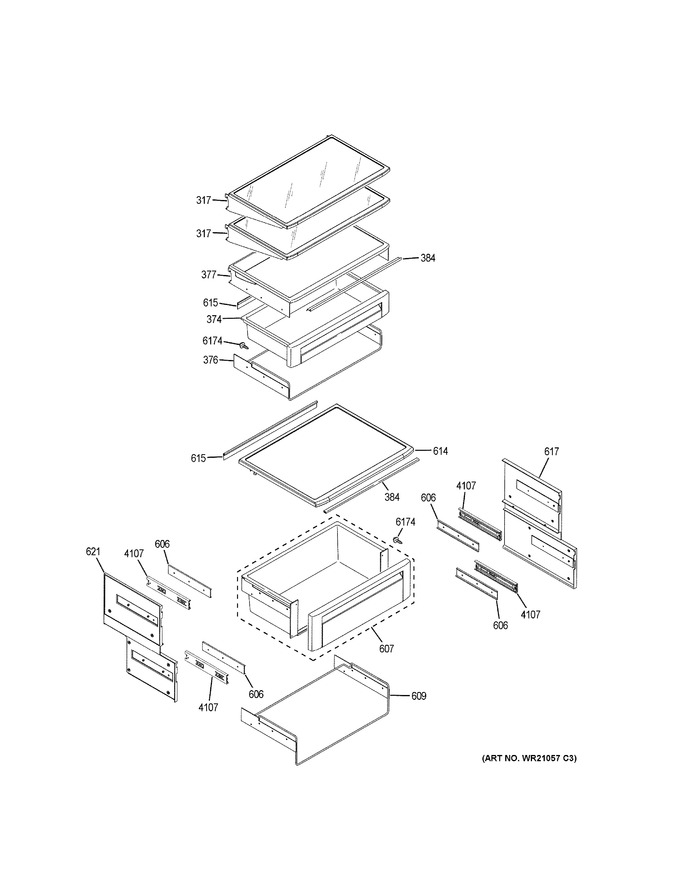

Diagram for PSB48YSKCSS
