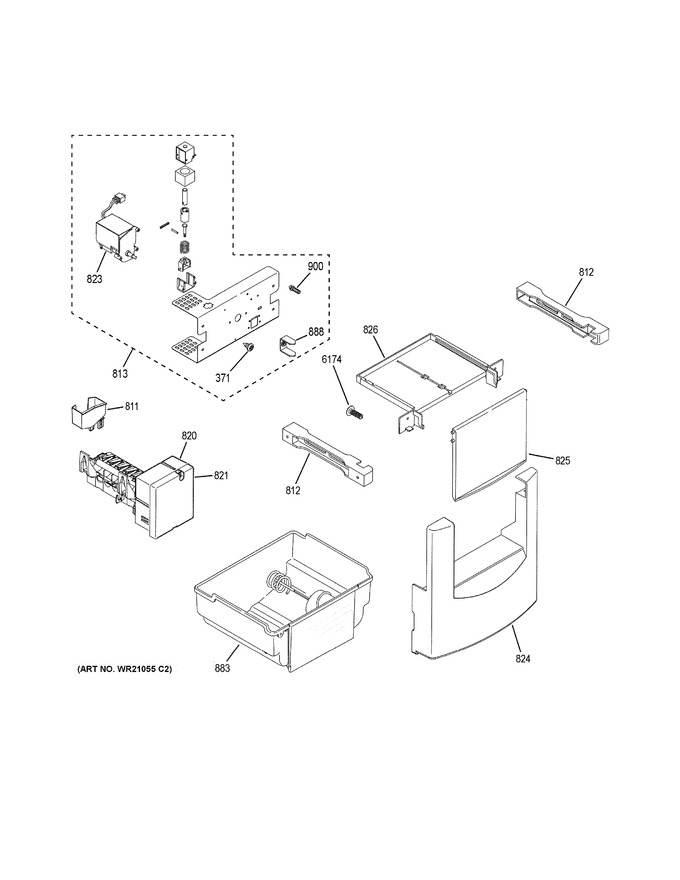

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 371 | WR01X10618 | Scr 8-18 Tpt 1/4 |
|
- | |||||
| 811 | WR29X20863 | Cup Fill Im |
|
- | |||||
| 812 | WR72X10103 | Bucket Slide |
|
- | |||||
| 813 | WR17X29747 | Auger Motor Assembly 48" |
|
- | |||||
| 820 | WR30X28705 | Icemaker |
|
- | |||||
| 821 | WR29X10082 | Cover Icemaker |
|
- | |||||
| 823 | WR60X10276 | Auger Motor, Disp |
|
- | |||||
| 824 | WR17X11198 | Ice Bin Frt |
|
- | |||||
| 825 | WR17X12547 | Door Ice Bin |
|
- | |||||
| 826 | WR71X10420 | Ice Bin Door Track |
|
- | |||||
| 883 | WR17X11410 | Kit Bucket & Auger Disp |
|
- | |||||
| 888 | WR02X11937 | Drive Auger Dispenser |
|
- | |||||
| 900 | WR02X12576 | Support Twist 9119-01-99 |
|
- | |||||
| 6174 | WR01X10449 | Screw 6x1/2 Pan Phil H/l |
|
- |
