Diagram # Part Number Description Series Availability Ships Price Add to Cart
700 WR23X10622 Power Supply Pcb Appelez-nous -
701 WR02X30111 Water Valve Bracket Appelez-nous -
702 WR02X29774 Main Board Cover Appelez-nous -
703 WR55X29748 Board T Main Sxs Vs Bi Appelez-nous -
703 WR55X27071 Board T Main Sxs Vs Bi Appelez-nous -
703 WR55X28659 Board Asm Main Control Appelez-nous -
704 WR02X29169 Main Board Stand Off Appelez-nous -
706 WR74X10125 Dryer Appelez-nous -
709 WR02X12569 System Pan Bracket Appelez-nous -
713 WR60X10216 Motor Dc Cond Fan Appelez-nous -
717 WR01X10305 Steel Collar Appelez-nous -
718 WR01X10307 1/4-20 Hex Nut Appelez-nous -
723 WR02X10593 Bracket Cond Fan (rear) Appelez-nous -
724 WR01A00315 Grommet Fan Motor   (Replaces: WR02X10520) Special Order $ 4.17

725 WR87X24183 Inverter Compressor Emb Appelez-nous -
726 WG03F00071 Bracket Cond Fan (mtg)   (Replaces: WR02X11863) In-Stock Immediately $ 27.00

727 WR01F02003 Blade Cond Fan Asm   (Replaces: WR60X10206) Special Order $ 11.51

729 WR17X11252 Shroud Condenser Appelez-nous -
735 WR55X29405 Power Cord Appelez-nous -
737 WR01F00846 Grommet   (Replaces: WR02X10099) Special Order $ 7.15

740 WR01F02892 Prod Serv Condenser   (Replaces: WR84X10022) Special Order $ 403.54

741 WR1X1466 Scr 8-32 T Hxw 3/8 S Appelez-nous -
749 WR17X10694 Baffle Cond Air Appelez-nous -
753 WR01X10459 Flat Washer 3/8x 7/8 Appelez-nous -
756 WR17X27894 Baffle Lh Appelez-nous -
777 WR02X10370 Bracket Water Valve Appelez-nous -
795 WG03F00070 Bracket And Valve Asm   (Replaces: WR57X10084) Special Order $ 167.45

890 WG04A01239 #10x1\2 Ph Sms   (Replaces: WD2X295) Special Order $ 3.97

903 WR87X29409 Compressor Inverter Appelez-nous -
1610 WR17X12350 Cond Baffle Appelez-nous -
6573 WR02X13041 Tube Asm Water Valve Appelez-nous -
8454 WR38X10190 Edge Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

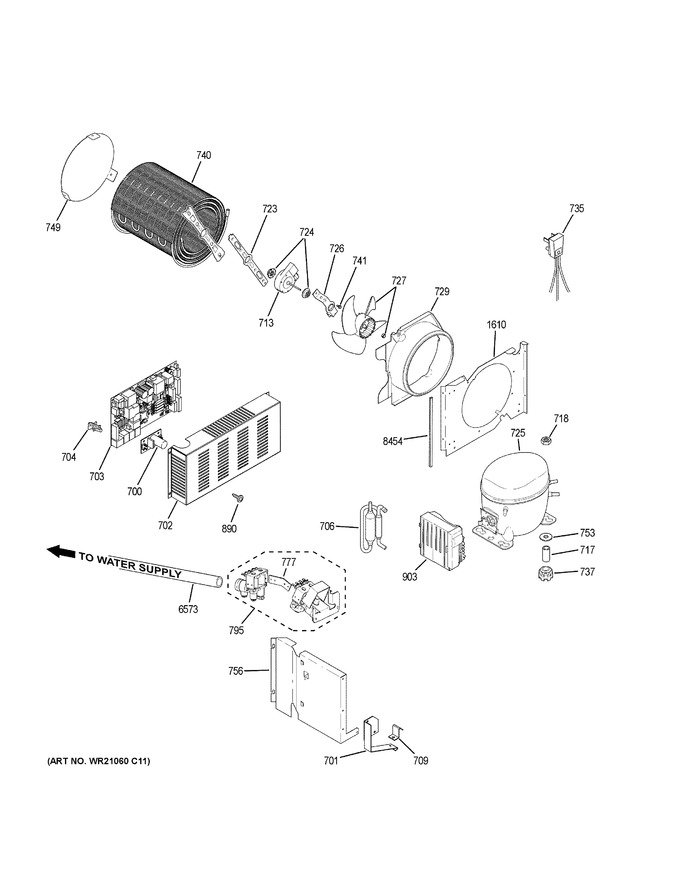

Diagram for PSB48YSKCSS
