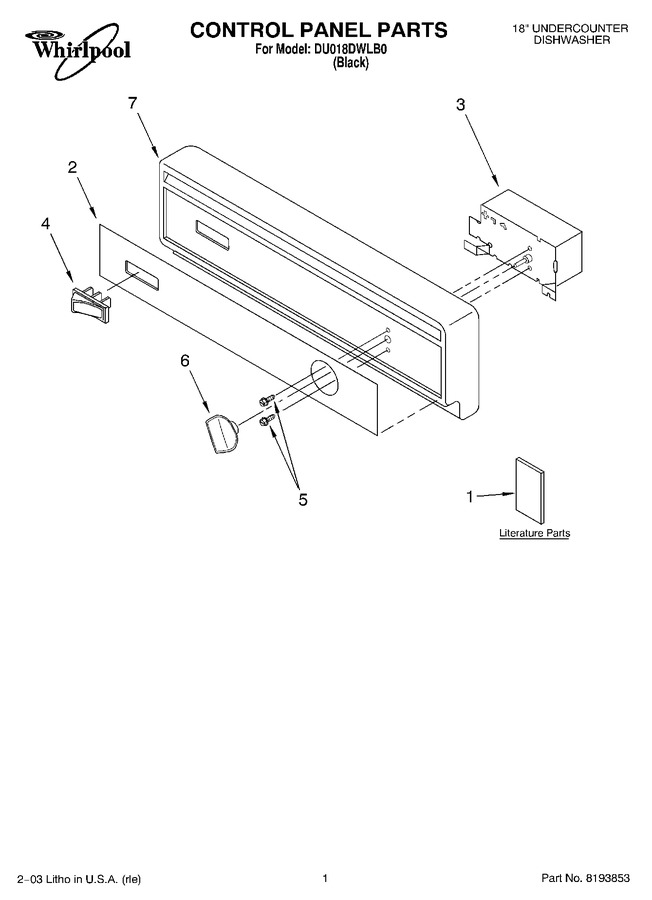

01 - Control Panel Parts
02 - Tub Parts
03 - Door And Toe Panel Parts
04 - Frame Parts
05 - Pump And Sprayarm Parts
06 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8193831 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8193854 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8193616 | Literature Parts (guide, Energy) |
|
- | |||||
| 2 | 8193587 | Insert, Control Panel |
|
- | |||||
| 3 | 8193832 | Timer |
|
- | |||||
| 4 | 8193589 | Switch, Rocker |
|
- | |||||
| 5 | 965571 | Screw, Timer |
|
- | |||||
| 6 | 965486 | Knob, Timer |
|
- | |||||
| 7 | 965568 | Panel, Control (also Order Item 2) |
|
- |
