01 - Control Panel Parts


02 - Tub Parts

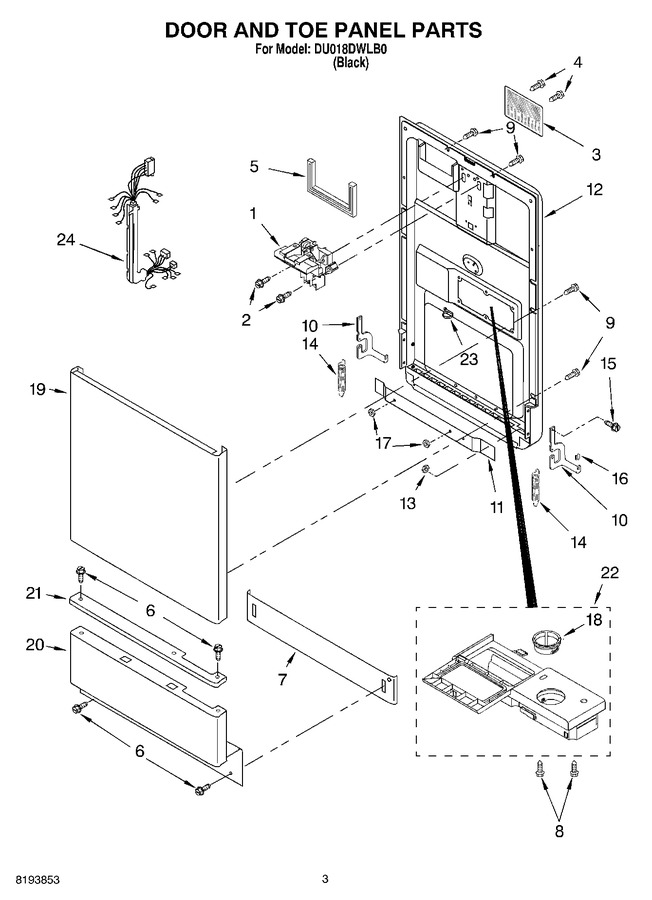

03 - Door And Toe Panel Parts


04 - Frame Parts


05 - Pump And Sprayarm Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193592		Latch Assembly		Appelez-nous	-
2	965488		Screw		Appelez-nous	-
3	965505		Cover, Vent		Appelez-nous	-
4	965506		Screw, Vent Cover		Appelez-nous	-
5	965507		Gasket, Vent Cover		Appelez-nous	-
6	8193850		Screw		Appelez-nous	-
7	8193851		Panel, Toe		Appelez-nous	-
8	8193852		Screw		Appelez-nous	-
9	4340341		Screw		Appelez-nous	-
10	965489		Arm Assembly (r.h. & L.h.)		Appelez-nous	-
11	8193844		Seal, Baffle		Appelez-nous	-
12	965574		Door, Inner		Appelez-nous	-
13	965492		Nut, Arm Assembly		Appelez-nous	-
14	965493		Spring, Door		Appelez-nous	-
15	965494		Screw, Arm Assembly		Appelez-nous	-
16	8193593		Pad, Spring		Appelez-nous	-
17	965495		Speednut, Baffle		Appelez-nous	-
18	8193849		Cap, Rinse Aid		Appelez-nous	-
19	8193845		Panel, Door		Appelez-nous	-
20	8193846		Panel, Access		Appelez-nous	-
21	8193847		Trim, Access Panel		Appelez-nous	-
22	8193596		Body Assembly		Appelez-nous	-
23	8193848		Clamp, Wire		Appelez-nous	-
24	8193833		Harness, Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
