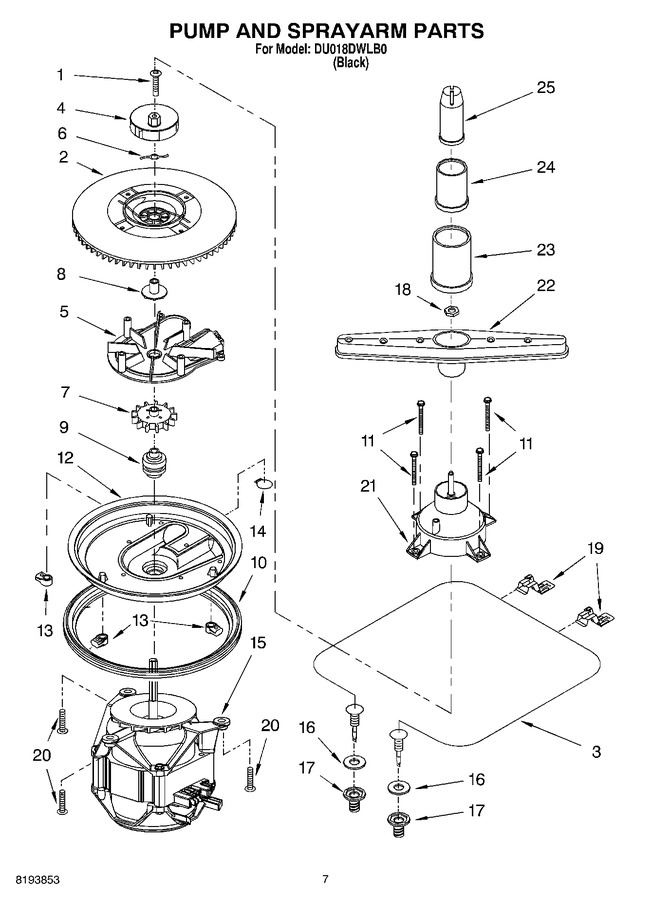

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193600		Screw		Appelez-nous	-
2	8193614		Cover, Pump Housing		Appelez-nous	-
3	965534		Heater		Appelez-nous	-
4	8193605		Upper Impeller		Appelez-nous	-
5	8193840		Cover, Volute		Appelez-nous	-
6	8193602		Macerator		Appelez-nous	-
7	8193604		Impeller, Lower		Appelez-nous	-
8	8193606		Slinger, Pump		Appelez-nous	-
9	8193841		Sleeve & Seal Assembly		Appelez-nous	-
10	8193608		Gasket, Pump		Appelez-nous	-
11	965536		Screw, Pump Housing		Appelez-nous	-
12	8193842		Housing, Pump		Appelez-nous	-
13	8193843		Retainer, Sump		Appelez-nous	-
14	8193611		Valve, Check		Appelez-nous	-
15	8193612		Motor Assembly		Appelez-nous	-
16	965541		Washer, Insulating		Appelez-nous	-
17	965542		Nut, Heater		Appelez-nous	-
18	965548		Nut, Spray Arm		Appelez-nous	-
19	8193601		Bracket, Heater		Appelez-nous	-
20	965543		Screw, Motor Mounting		Appelez-nous	-
21	8193613		Diffuser		Appelez-nous	-
22	965545		Sprayarm, Lower		Appelez-nous	-
23	965462		Base, Tower		Appelez-nous	-
24	965463		Middle, Tower		Appelez-nous	-
25	965546		Tip, Tower		Appelez-nous	-
