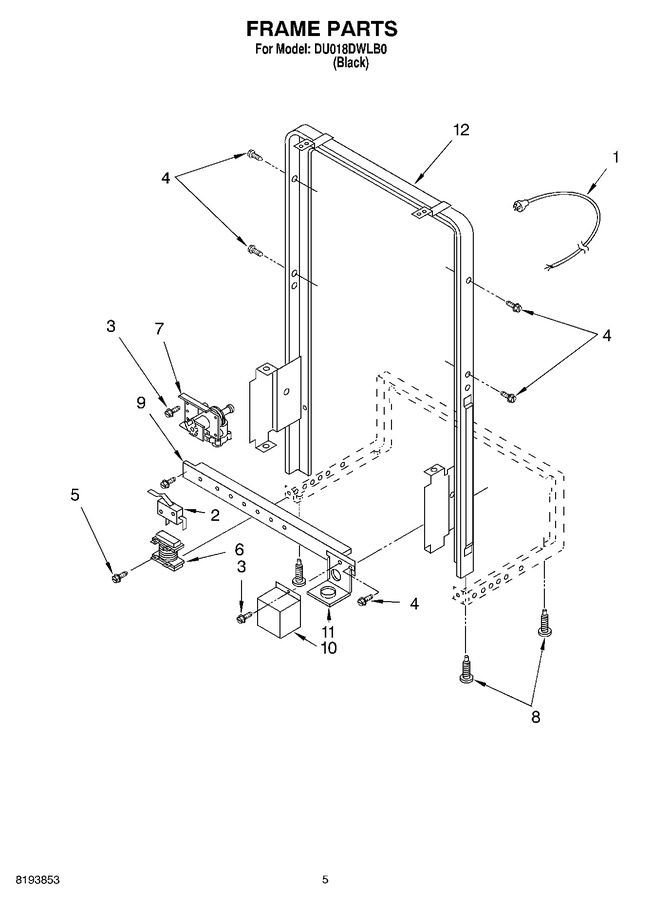

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965337 | Power Cord (optional) |
|
- | |||||
| 2 | 8193826 | Switch, Float |
|
- | |||||
| 3 | 965510 | Screw |
|
- | |||||
| 4 | 4340341 | Screw |
|
- | |||||
| 5 | 4340129 | Screw, Relay |
|
- | |||||
| 6 | 8193597 | Relay, Motor |
|
- | |||||
| 7 | WPR9800089 | Valve, Inlet (Replaces: 8193837) |
|
$ 177.97 | |||||
| 8 | 8193838 | Levelers (4) |
|
- | |||||
| 9 | 965519 | Brace, Front |
|
- | |||||
| 10 | 965515 | Cover, Junction Box |
|
- | |||||
| 11 | 8193839 | Bracket, Junction Box |
|
- | |||||
| 12 | 965517 | Frame Assy., Front |
|
- |
