SELECT A DIAGRAM

01 - Control Panel Parts

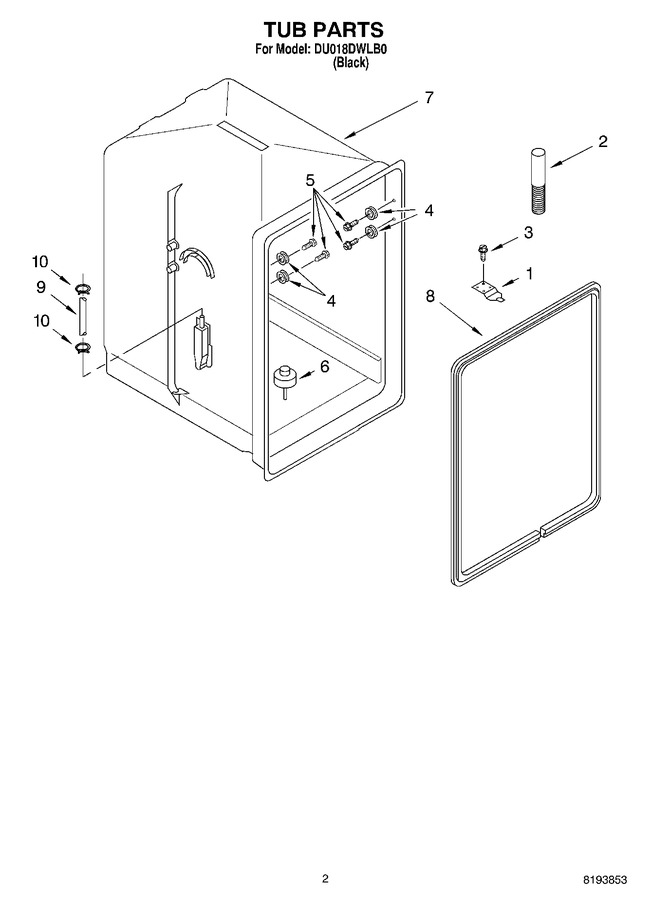

02 - Tub Parts


03 - Door And Toe Panel Parts


04 - Frame Parts


05 - Pump And Sprayarm Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193834		Strike, Door		Appelez-nous	-
2	8193835		Hose, Drain		Appelez-nous	-
3	4340341		Screw		Appelez-nous	-
4	8193836		Roller, Tub		Appelez-nous	-
5	965527		Screw, Roller		Appelez-nous	-
6	965528		Float		Appelez-nous	-
7	965529		Tub & Gasket Assembly (includes Item 8)		Appelez-nous	-
8	965530		Gasket, Tub		Appelez-nous	-
9	965531		Tubing, Inlet (includes Item 10)		Appelez-nous	-
10	965532		Clamp (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
