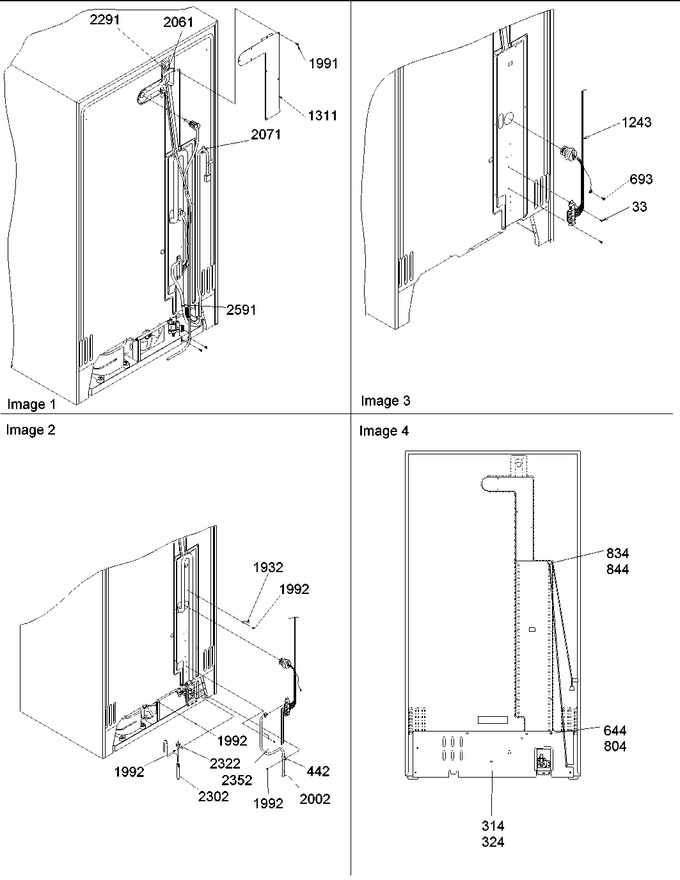

SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Deli, Shelves, Crisper Assy


04 - Drain, Rollers & Evaporator


05 - Evaporator Fan Shroud & Motor Assemblies


06 - Freezer Door


07 - Freezer Shelves & Lights


08 - Ice Maker Parts


09 - Ice Maker/control Assy


10 - Lights, Hinges & Shelving


11 - Machine Compartment


12 - Refrigerator Door, Trim & Handles


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
314	D7788912		Ass`y, Mc Back		Appelez-nous	-
324	M0219704		Screw		Appelez-nous	-
442	M0103904		Clamp, Speed		Appelez-nous	-
644	M0108001		Clamp, Tube		Appelez-nous	-
693	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
804	M0227217		Screw, Sm		Appelez-nous	-
834	10178405		Cover, O.c.back		Appelez-nous	-
844	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
1243	12096402		Harness, Cabinet		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1932	B5794201		Clamp		Appelez-nous	-
1991	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
1992	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
2002	10678503		Cord, Power		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
2291	M0310316		Plug Button		Appelez-nous	-
2302	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
2322	10547002		Clip, Drier		Appelez-nous	-
2352	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
2591	M0104102		Clip, Cord				$ 8.10
