SELECT A DIAGRAM
New Model Search:

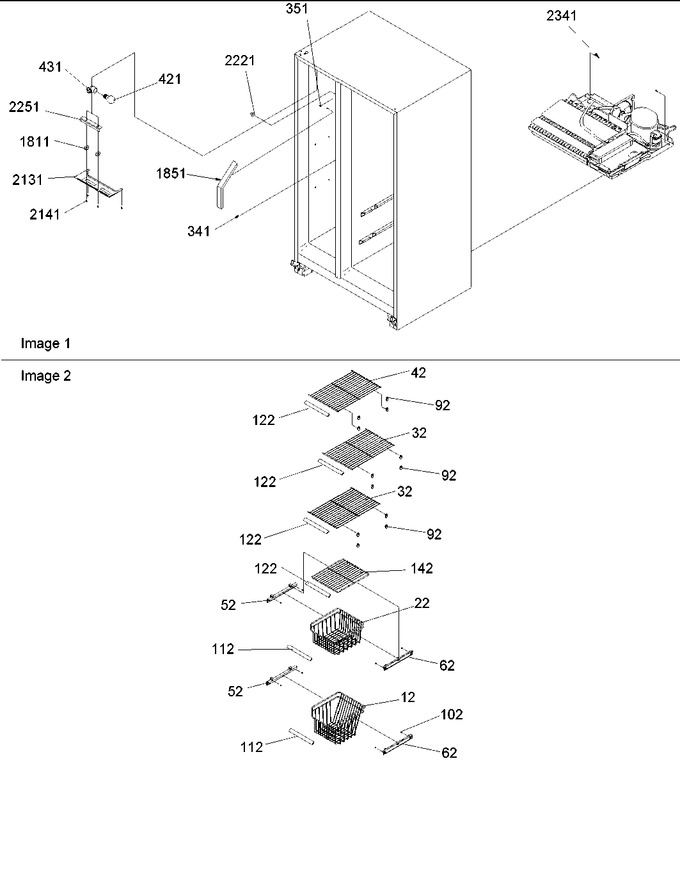

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 12413601 | Basket, Frz 9`` |
|
- | |||||
| 22 | 12413701 | Basket, Frz 7`` |
|
- | |||||
| 32 | 12363403 | Shelf, Sta Freezer |
|
- | |||||
| 42 | 12363404 | Shelf, Sta Frz |
|
- | |||||
| 52 | 12015101 | Rail, Shelf (lt) |
|
- | |||||
| 62 | 10972801 | Rail, Shelf (rt) |
|
- | |||||
| 92 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 102 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 112 | 12314101 | Trim, Basket/shelf |
|
- | |||||
| 122 | 12314102 | Trim, Basket/shelf |
|
- | |||||
| 142 | 12353306 | Shelf, Sta Freezer |
|
- | |||||
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | W10887190 | Bulb, Light (60 Watt) (Replaces: A0282807) |
|
Immediately | $ 19.23 | ||||
| 431 | D7714408 | Socket, Light |
|
$ 68.10 | |||||
| 1811 | M0270508 | Washer |
|
- | |||||
| 1851 | A3189335 | Gasket Foam |
|
- | |||||
| 2131 | 10493302 | Cover, Frz Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2221 | M0560005 | Support |
|
- | |||||
| 2251 | 10014715 | Shield, Light |
|
- | |||||
| 2341 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
