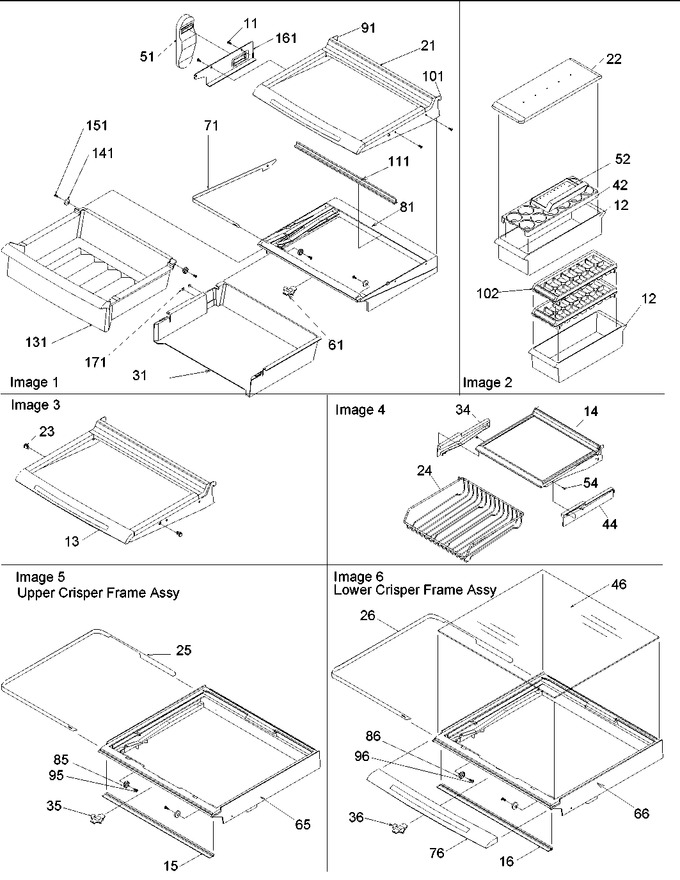

SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Deli, Shelves, Crisper Assy


04 - Drain, Rollers & Evaporator


05 - Evaporator Fan Shroud & Motor Assemblies


06 - Freezer Door


07 - Freezer Shelves & Lights


08 - Ice Maker Parts


09 - Ice Maker/control Assy


10 - Lights, Hinges & Shelving


11 - Machine Compartment


12 - Refrigerator Door, Trim & Handles


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
13	10809539		Shelf, Can Rack		Appelez-nous	-
14	10809539		Shelf, Can Rack		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
16	10968801		Seal-crisp Front		Appelez-nous	-
21	10809542		Shelf, Full Glide		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10875101		Stop, Shelf		Appelez-nous	-
24	12500001		Rack, Can		Appelez-nous	-
25	10882701		Band, Crisper		Appelez-nous	-
26	10882702		Band-crisper		Appelez-nous	-
31	10783901		Sleeve,deli		Appelez-nous	-
34	12528205		Glide,left Can Rack		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
36	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
44	12528206		Glide,right Can Rack		Appelez-nous	-
46	Y10370065		Glass-shelf		Appelez-nous	-
51	10872701		Gasket, Deli		Appelez-nous	-
52	10310901		Tray, Butter		Appelez-nous	-
54	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
61	10852501		Slide, Crisper/deli		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
66	10783001		Frame-crisper		Appelez-nous	-
71	10986402		Band-deli		Appelez-nous	-
76	12113010		Trim,lwr Crispr Frnt		Appelez-nous	-
81	10783702		Frame, Deli		Appelez-nous	-
85	10481001		Roller, Pan				$ 10.99
86	10481001		Roller, Pan				$ 10.99
91	10809915		Rail, L Blank Side		Appelez-nous	-
95	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
96	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10809916		Rail, R Blank Side		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
111	10873801		Extrn.-rear Deli		Appelez-nous	-
131	10784101		Pan,deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
161	10872601		Manifold, Deli		Appelez-nous	-
171	M0051701		Pad-bumper		Appelez-nous	-
